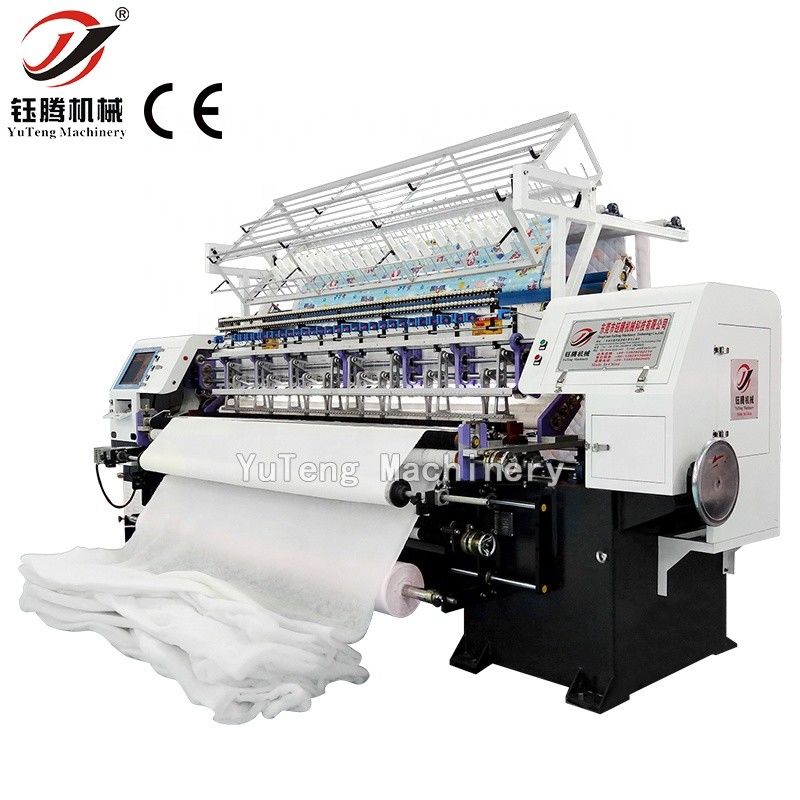

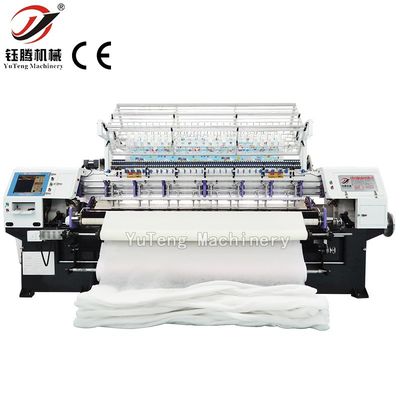

Automatic 96 Inches High Speed Multi Neeedle Quilting Machine For Bedding Sofa Cover Quilt
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YGB96 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|---|
| Packaging Details: | paper board&film |
|
Detail Information |
|||
| Machine Purpose: | Garment, Bedding, Comforter, Textile，leather，seat Cover | Condition: | New |
|---|---|---|---|
| Thickness Of Quilting: | ≤25mm | Max Quilt Width: | 2450mm |
| Production Speed(m/hour): | 20-160 | Stitch Length: | 2-12mm |
| Shuttle Model: | 7#、10# | Needle Model: | 14#、16#、19# |
| Port: | ShenZhen | ||
| High Light: | High speed Automatic quilting machine,multi neeedle Automatic quilting machine,96 Inches Automatic quilting machine |
||
Product Description
High speed shuttle multi needle quilting machines
Purpose:
It is widely for quilting high-quality jackets garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover ,mattress covers, straight lines quilts, square quilts, diamond quilts and Wall decoration etc.
Features:
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Technical Parameters:
| Model | YGB96-2-3 | YGB96-3-5 | YGB96-3-6 |
| Dimension(L*W*H) | 4800*1200*1800(mm) | 4800*1200*1800(mm) | 4800*1200*1800(mm) |
| Quilting Width | 2450mm | 2450mm | 2450mm |
| Needle rows | 2 | 3 | 3 |
| Space between needle rows | 3" | 3"+2" | 3"+3" |
| Space between needle | 25.4mm | 25.4mm | 25.4mm |
| X-axis movement displacement | 254mm | 304.8mm | 304.8mm |
| Thickness of quilting | ≤25mm | ≤25mm | ≤25mm |
| Stitch length | 2-12mm | 2-12mm | 2-12mm |
| Speed of operation(m/hour) | 20-160(m/hour) | 20-160(m/hour) | 20-160(m/hour) |
| Model of needle | 16# or 19# | 16# or 19# | 16# or 19# |
| Shuttle model | 7# or 10# | 7# or 10# | 7# or 10# |
| Quilting Speed(r/min) | 100-1000(RPM) | 100-1000(RPM) | 100-1000(RPM) |
| Voltage(AC) |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
| Total power | 5.5KW | 5.5KW | 5.5KW |
| Gross weight | 4500kg | 4500kg | 4500kg |
* Can be customized according to customer requirements
