Automatic 96 Inch Factory Use Multi Needle Looper Computer Mattress Bedding Quilting Machine
Product Details:
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YT-3200B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|---|
| Packaging Details: | paper board&film |
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Applicable Industries: | Mattress Manufacturing Plant |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Warranty: | 1 Year |
| Condition: | New | Weight: | 5500KG |
| Max Sewing Speed: | 1200RPM/MIN | Max Sewing Thickness: | 80MM |
| Voltage: | 220V/380V | ||
| High Light: | Automatic Bedding Quilting Machine,Factory Use Bedding Quilting Machine,96 Inch Bedding Quilting Machine |
||
Product Description

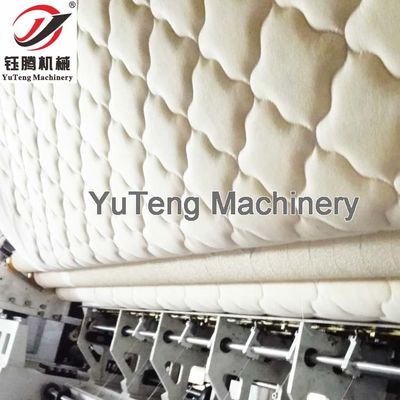

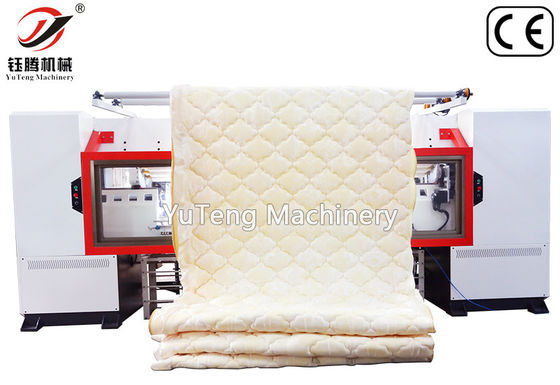

Computer Multi Needle Chain Stitch Quilting Machine
Product Purpose:
For quilting Mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, bedding and more.
Main Features:
1. Full thread break detection for top and bottom threads
2. 360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6. Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
11. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
Technical Parameters:

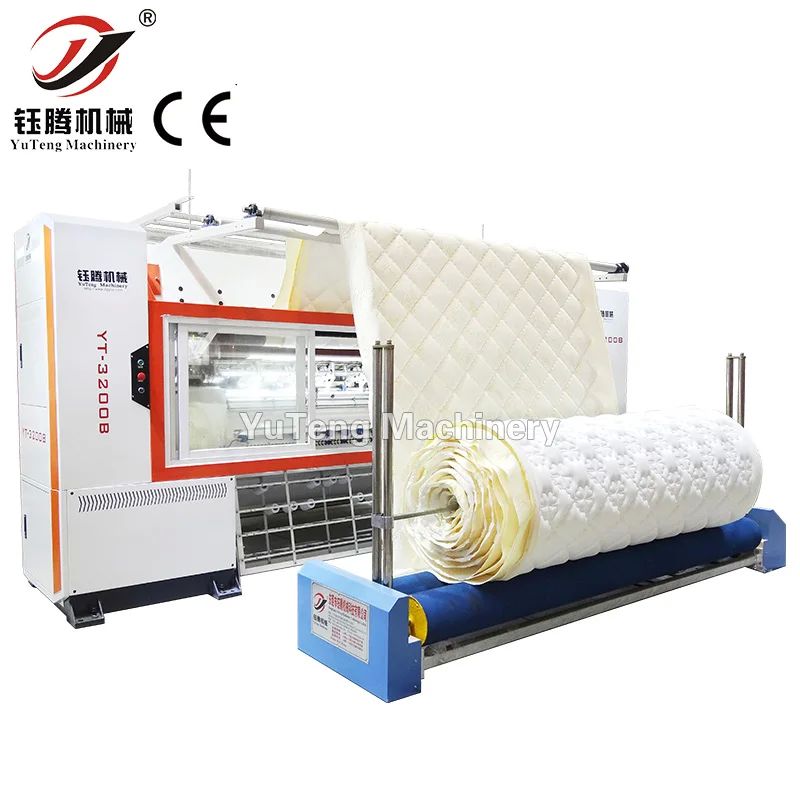

| Model | YT-3200B |
| Dimension(L*W*H) | 5050mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2"; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 100-1200(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase |
| Total power | 8KW |
| Gross weight | 5500KG |
Our Company:
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
Packing&Shipping:
Service:
1. Delivery Time: It is generally within 30 working days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: EXW,FOB, CIF, CFR, etc.
4.After-sale services: Good after-sale service provided, we believe in good customer service all the time.
5. Warrany: One year.
6.Customized Model are available to meet client's various needs.
