Industrial Heavy Duty Computerized Shuttleless Quilting Sewing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YT-3000A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|---|
| Packaging Details: | paper board&film |
|
Detail Information |
|||
| Name: | Computer Quilting Machine | Dimension(L*W*H): | 5000mm*1600mm*2300mm |
|---|---|---|---|
| Condition: | New | Style: | Chain Stitch |
| Function: | Mattress Quilting | Needle Bar Space: | 5" And 6" |
| Quilting Width: | 2450MM | ||
| High Light: | Heavy Duty Quilting Sewing Machine,Industrial Quilting Sewing Machine |
||
Product Description

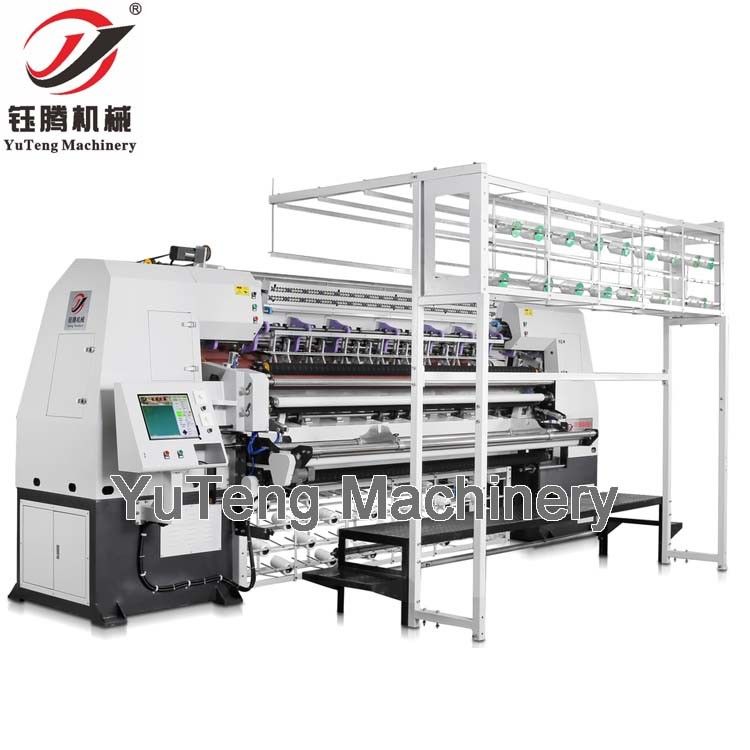

Computer Multi Needle Chain Stitch Quilting Machine
Purpose:
Mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, bedding and more
Technical Parameters:
| Model | YT-3000A |
| Dimension(L*W*H) | 5000mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2"Inch ; 3"+3"Inch |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 100-1000(r/min) |
| Voltage(AC) | 380V/50HZ 220V/60HZ |
| Total power | 8KW |
| Gross weight | 5500kg |
* Can be customized according to customer requirements
Main Feature:
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
Packing and Shipping:
Generally speaking, the packing can be carried out with film and box, which can be packed according to the customer's requirement.
Certificate:
Want to Know more details about this product
