1.6 Meters Factory Use Garments Sewing Machine Computerized Quilting Machine For Home Textile Product
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YGC64 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | paper board&film |
|
Detail Information |
|||
| Dimension: | 3800*1200*1800mm | Space Between Needles: | 25.4mm |
|---|---|---|---|
| Stitch Length: | 2-6mm | Quilting Speed: | 300-800r/min |
| Voltage: | 220V/380V | Thickness Of Quilting: | ≤25mm |
| Power: | 3.5KW | Port: | ShenZhen |
| High Light: | Factory Use Computerized Quilting Machine,Home Textile Product Computerized Quilting Machine,Home Textile Computerized Quilting Machine |
||
Product Description

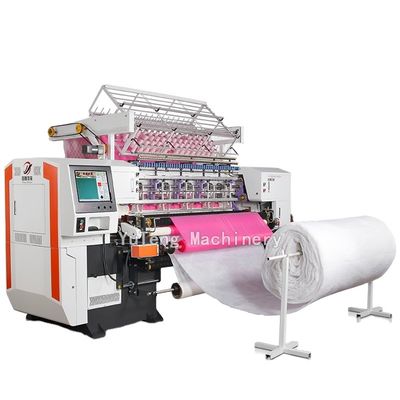

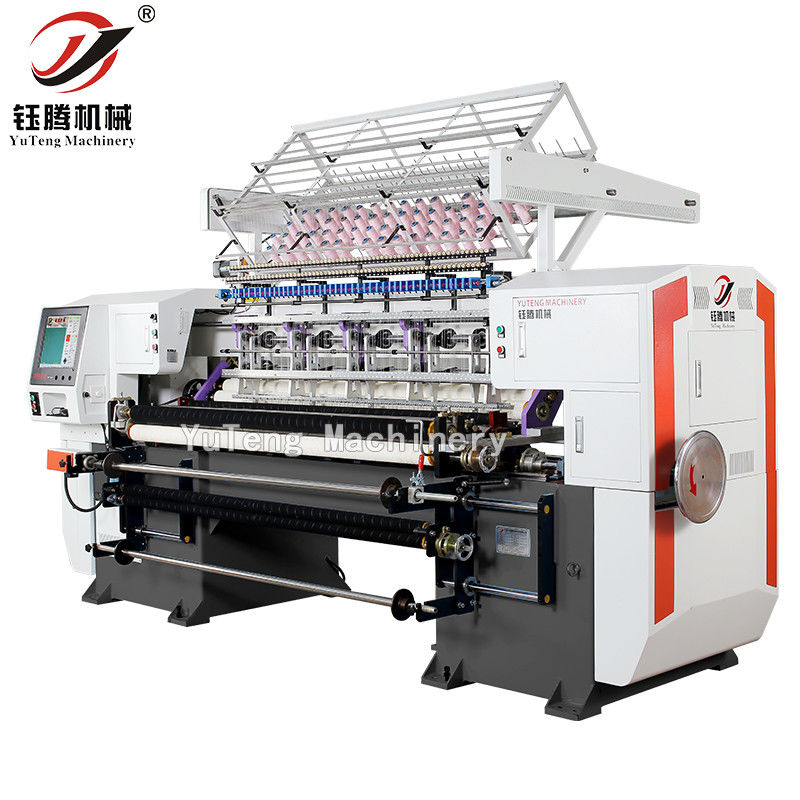

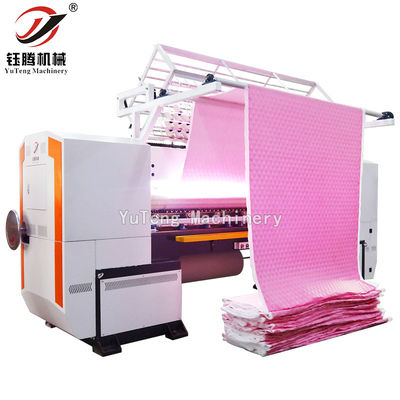

High speed Computerized Shuttle Multi needle Quilting Machine YGC64 Series
Purpose:
It is widely for quilting high-quality jackets garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover ,mattress covers, straight lines quilts, square quilts, diamond quilts and Wall decoration etc
Features:
1. Adjusted speed by computer and the speed can reach 800r/min2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Technical Parameters:
| Model | YGC64-2-3 | YGC64-3-5 | YGC64-3-6 |
| Dimension(L*W*H) | 3800mm*1200mm*1800mm | 3800mm*1200mm*1800mm | 3800mm*1200mm*1800mm |
| Quilting Width | 1650mm | 1650mm | 1650mm |
| Needle rows | 2 | 3 | 3 |
| Space between needle rows | 3"(inch) | 3"+2"(inch) | 3"+3"(inch) |
| Space between needle | 25.4mm | 25.4mm | 25.4mm |
| X-axis movement displacement | 203.2mm | 228.6mm | 304.8mm |
| Thickness of quilting | 25mm | 25mm | 25mm |
| Stitch length | 2-6mm | 2-6mm | 2-6mm |
| Speed of operation(m/hour) | 20-120(m/hour) | 20-120(m/hour) | 20-120(m/hour) |
| Model of needle | 14#,16#,19# | 14#,16#,19# | 14#,16#,19# |
| Quilting Speed(r/min) | 300-800(r/min) | 300-800(r/min) | 300-800(r/min) |
| Voltage(AC) | 380V/50HZ,220V/60HZ | 380V/50HZ | 380V/50HZ,220V/60HZ |
| Total power | 3.5KW | 3.5KW | 3.5KW |
| Gross weight | 3300kg | 3300kg | 3300kg |
* Can be customized according to customer requirements
Detailed images:
1,Routine two rollers structure
2,New aluminum alloy needle bar frame structure
3,The stand of bottom cloth separate from moving saddles
4,Edge trimming and slitting function,if customer need,you can choose this device .(Protected patents in the machine appearance &structure,do not imitate,please)
Packing and Shipping:
The normal package is PE film & paper board packing, It is both ok If you ask wooden box, and the wooden box will be fumigated.
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is Yuteng.
- Q: Where is this product from?
- A: This product is from China.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 1 set.
- Q: Can I order a sample of this product?
- A: Yes, you can order a sample of this product. Please contact us for more information.
- Q: Is this product customizable?
- A: Yes, this product is customizable. Please contact us for more information on customizations and pricing.
- Q: What type of materials can this machine quilt?
- A: This machine is suitable for quilting a variety of materials such as cotton, wool, and synthetic fabrics.
- Q: Does this product come with a warranty?
- A: One year warranty. Please contact us for more information on warranty terms and conditions.
