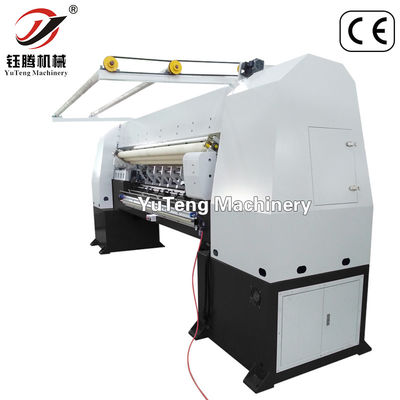

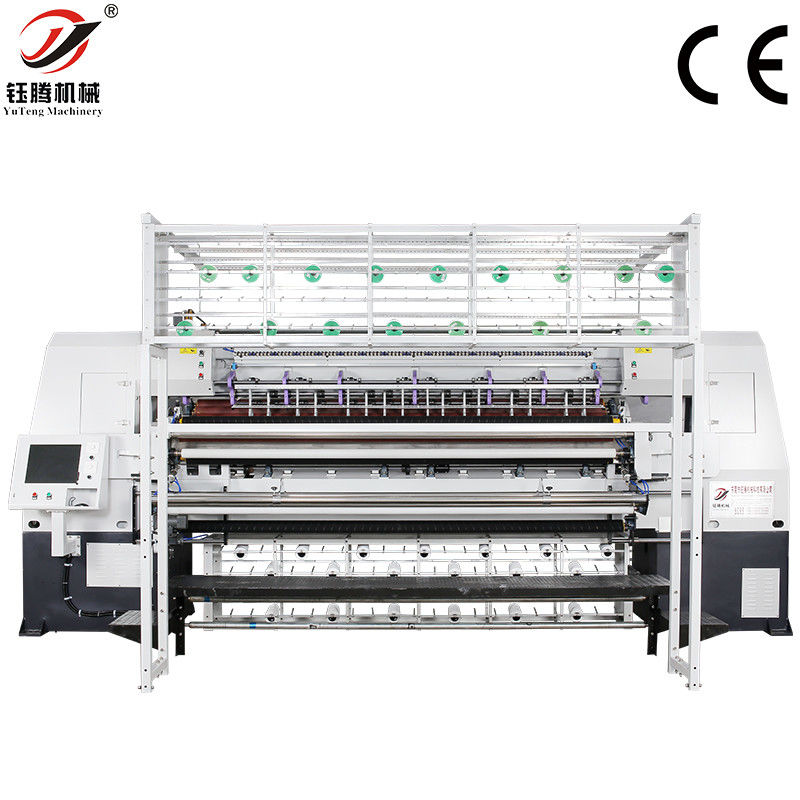

Fast Speed Computerized Multi Needle Quilting Machine 2450mm Width
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | Film &paper board packing |
|
Detail Information |
|||
| Product Name: | Computerized Multi Needle Quilting Machine | Number Of Needles: | Multiple |
|---|---|---|---|
| Quilting Width: | 2450mm | Automatic Thread Cutter: | Yes |
| Automatic Lubrication: | Yes | Quilting Speed: | 100-1000（r/min） |
| Speed Of Operation: | 60-230(m/hour) | Computerized Control System: | Yes |
| Warranty: | 1 Year | USB Port: | Yes |
| High Light: | Fast Speed Computerized Multi Needle Quilting Machine,2450mm Computerized Multi Needle Quilting Machine |
||
Product Description
Computerized Chain Stitch Multi Needle Quilting Machine
Product Description:
Features:

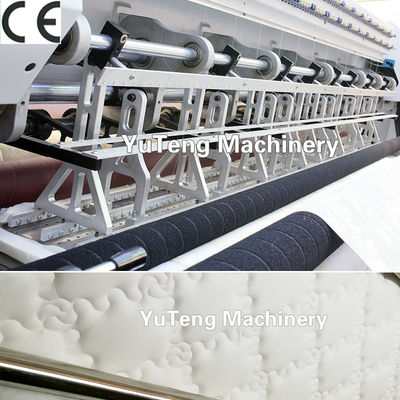

1,New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2,360°Multi-span and independent patterns,automatic thread trimming function.
3,Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file,easy to operation.
4,computer host adopt the most advanced embedded operating system and self-developed motion control chip,fast response speed,long service life,good stability .
5,Spindle driven by servo motor,it is able to change speed and positive inversion,cooperate with software to complete the slice thread trimming function
6,Adopt international advanced slice thread trimming function :effectively reduce the probability thread jump,more stable.
7,Strong functions of pattern-combining and multi-span(Tack&jump)quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
8,High rigid machine body,high running speed,balance running ,high precision,lower rate jump threads,perfect pattern stitch.
9,Infrared safety protection and Auto-stop sensors detection function.
Technical Parameters:
| Model | YT-3000A |
| Dimension(L*W*H) | 5000mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2"Inch ; 3"+3"Inch |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 100-1000(r/min) |
| Voltage(AC) | 380V/50HZ 220V/60HZ |
| Total power | 8KW |
| Gross weight | 5500kg |
* Can be customized according to customer requirements
Purpose:

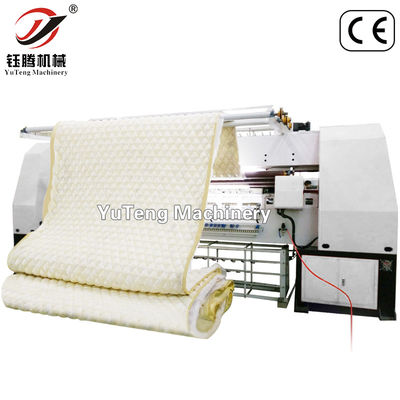

Mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers, decoration and more.
Our Service:
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
Packing and Shipping:
Certificate:
