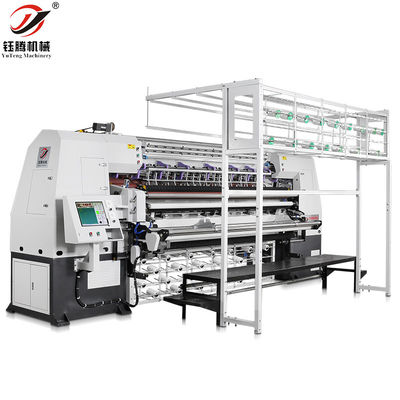

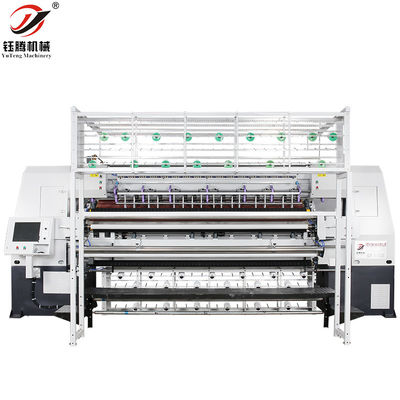

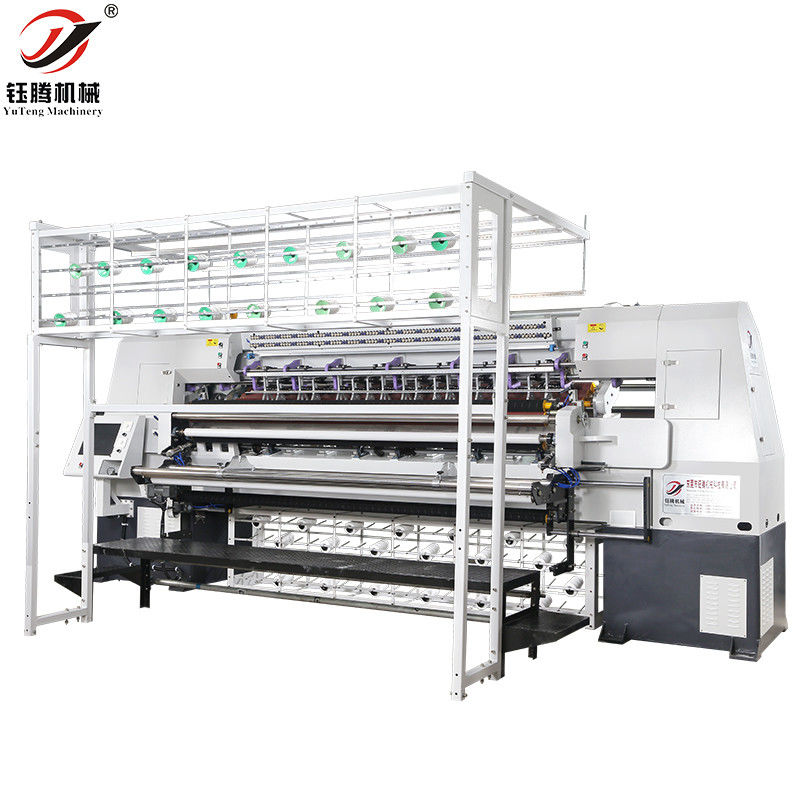

Industrial Computerized Quilting Machine For Bedding Mattress Garments
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machine |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | $30,000.00 - $45,000.00/sets |
| Packaging Details: | PE Film&paper board packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 1200 R/min | Max Sewing Thickness: | ≤80mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 8KW |
| Dimension(L*W*H): | 5000*1600*2300(mm) | Weight: | 5500 |
| Warranty: | 1 Year | Port: | Shenzhen/Guangzhou |
| High Light: | Industrial Computerized Quilting Machine,Computerized Quilting Machine For Bedding Mattress |
||
Product Description
High Speed Computerized Chain Stitch Multi Needle Quilting Machine Multi Needle Industrial Sewing Machine
Product Description:
The Industrial Computerized Sewing and Quilting Machine is a high-speed machine designed for efficient and precise sewing and quilting tasks. It is suitable for use in factories and offers advanced features to enhance productivity. This machine is manufactured by YuTeng Machine, a trusted brand in the industry, and it comes with a CE Certificate for quality assurance.
1,New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2,360°Multi-span and independent patterns,automatic thread trimming function.
3,Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file,easy to operation.
4,computer host adopt the most advanced embedded operating system and self-developed motion control chip,fast response speed,long service life,good stability .
5,Spindle driven by servo motor,it is able to change speed and positive inversion,cooperate with software to complete the slice thread trimming function
6,Adopt international advanced slice thread trimming function :effectively reduce the probability thread jump,more stable.
7,Strong functions of pattern-combining and multi-span(Tack&jump)quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
8,High rigid machine body,high running speed,balance running ,high precision,lower rate jump threads,perfect pattern stitch.
9,Infrared safety protection and Auto-stop sensors detection function.
Technical parameters :
| Model | YT-3000A |
| Dimension(L*W*H) | 5000mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2"Inch ; 3"+3"Inch |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 1000(r/min) |
| Voltage(AC) | 380V/50HZ 220V/60HZ |
| Total power | 8KW |
| Gross weight | 5500kg |
Purpose :
Mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers, decoration and more.
Certificate :
Company pictures :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
