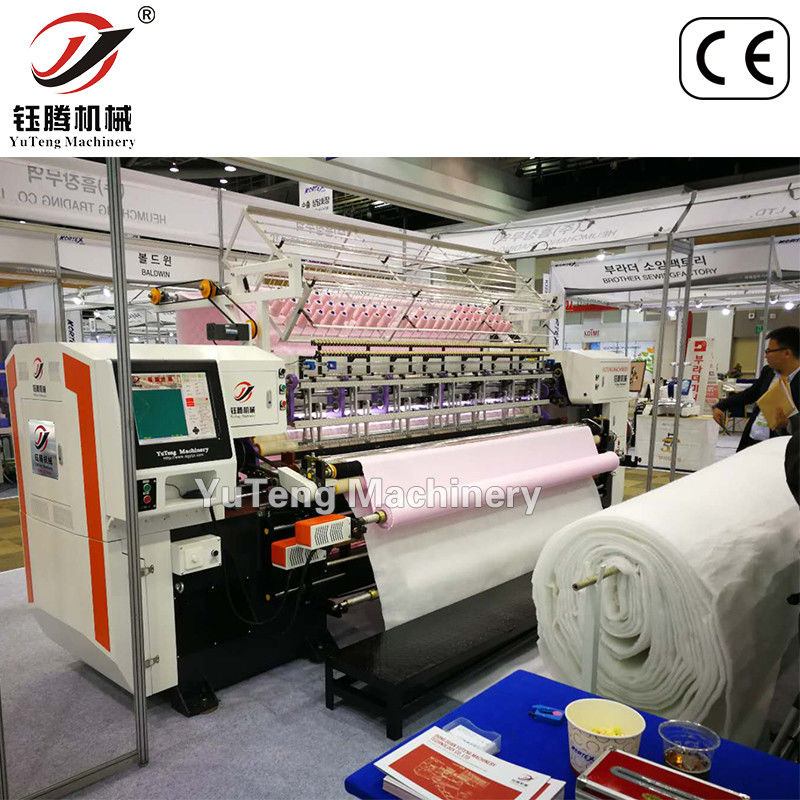

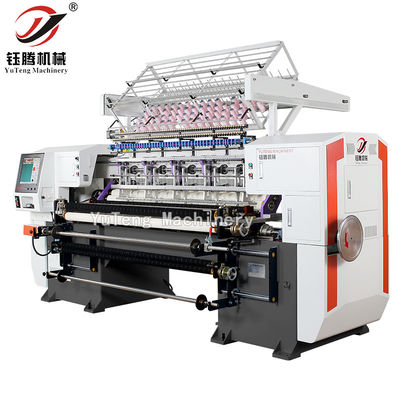

PLC Lock Stitch Sewing Machine Multi Needle Quilting Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | $24,000.00 - $40,000.00/sets |
| Packaging Details: | Film &paper board packing |
| Supply Ability: | 300 Set/Year |
|
Detail Information |
|||
| Dimension(L*W*H): | 3800*1200*1800(mm) | Applicable Industries: | Factory Use |
|---|---|---|---|
| Condition: | New | Max Sewing Speed: | 800rpm |
| Core Components: | PLC, Motor | Max Sewing Thickness: | 25mm |
| Number Of Head: | Multi Needle | Moving Style: | Frame Moved |
| Voltage: | 380V/220V | Power: | 3.5kw |
| Weight: | 3200kg | Warranty: | 1 Year |
| Port: | ShenZhen /GuangZhou | ||
| High Light: | PLC Lock Stitch Sewing Machine,Multi Needle Lock Stitch Sewing Machine |
||
Product Description
Bobbin Lock Stitch Sewing Machine Multi Needle Quilting Machine Manufacturer
1,Computerized speed governing , max.1000r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Technical parameters :
|
Model |
YGC64-2-3 |
YGC64-3-4.5/5/6 |
|
Dimension(L*W*H) |
3800mm*1200mm*1800mm |
3800mm*1200mm*1800mm |
|
Quilting Width |
1650mm |
1650mm |
|
Needle rows |
2 |
3/3/3 |
|
Space between needle rows |
3" |
3"+1.5"/2"/3" |
|
Space between needle |
25.4mm |
19.05mm/25.4mm/25.4mm |
|
X-axis movement displacement |
254mm |
228.6mm/228.6mm/304.8mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
|
Stitch length |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
|
Quilting Speed(r/min) |
300-800(RPM) |
300-800(RPM) |
|
Voltage(AC) |
380V/220V/50HZ |
380/220V/50HZ |
|
Total power |
3.5KW |
3.5KW |
|
Gross weight |
3200kg |
3200kg |
Machine details :
1,Routine two rollers structure
2,New aluminum alloy needle bar frame structure
3,The stand of bottom cloth separate from moving saddles
4,Edge trimming and slitting function,if customer need,you can choose this device .(Protected patents in the machine appearance &structure,do not imitate,please)
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
Certificate :
Company pictures :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
