Automatic Computerized Cutting Machine For Cloth Fabric Garment Wool Textile
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|
|
Detail Information |
|||
| Name: | Computerized Panel Cutter Machine | Condition: | New |
|---|---|---|---|
| Cutting Materials: | Cloth Fabric Garment Wool Textile | Type: | Automatic |
| Voltage: | 220V/380V | Applicable Industries: | Other |
| Production Capacity: | As Your Requirements | Warranty: | 1 Year |
| High Light: | Automatic Computerized Cutting Machine,Computerized Cutting Machine For Cloth Fabric |
||
Product Description
Automatic Computerized Cutting Machine For Cloth Fabric Garment Wool Textile

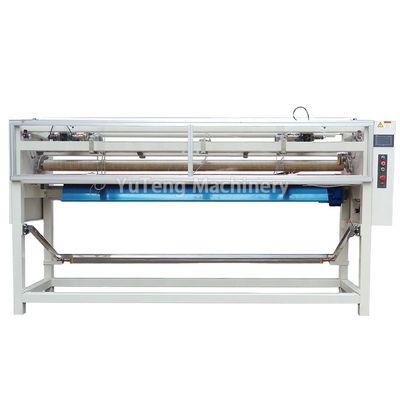

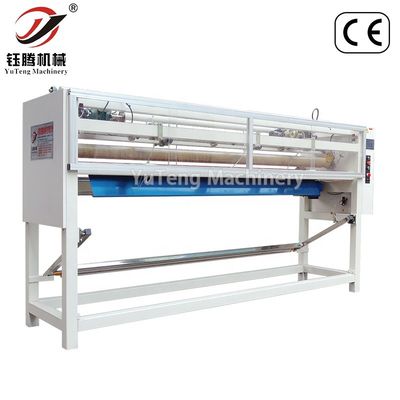

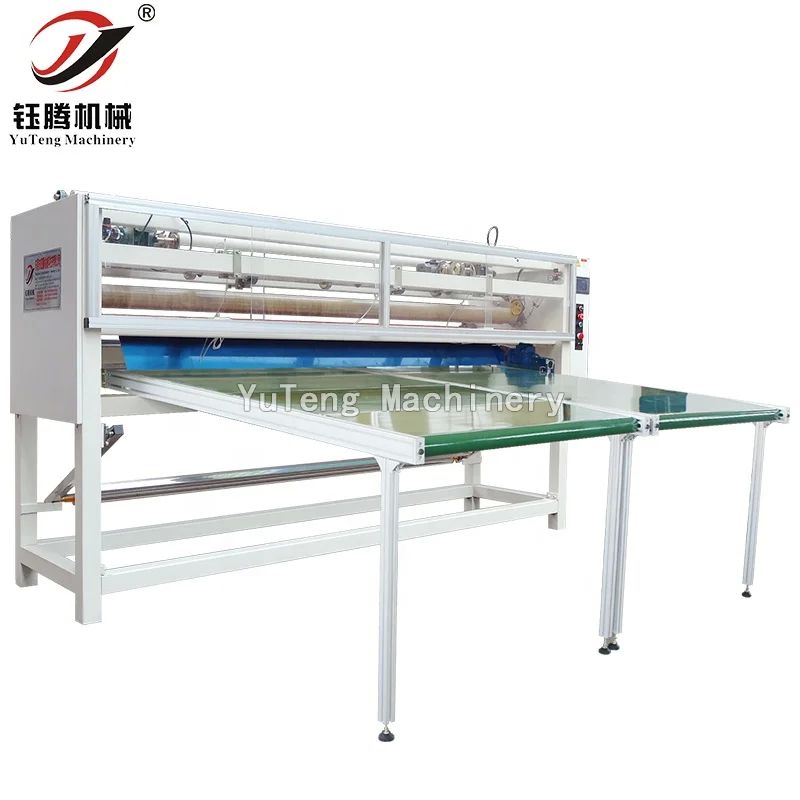

Computerized panel cutter machine
Product main features:
1,7”touch screen,large screen for ease of operation
2,Hidden slitting blades are more convenient and safer
3,Electric controls for length and width of cross cut which make operations more human
4,Feed-in top with article points for pressure rolle.The pressure will be even,and feeding will be leveling off.The slitting cut will be more smooth,especially for the edge trimming of thinner materil
5,Y-dimension with encoder for counting length.It can cut materials length Use the conveyor belt mechanical discharge.It will be convenient to fold material and save artificial.
Technical Parameters:
| Technical Parameters | Description |
|---|---|
| Model |
YTCM-C |
| Type | Automatic |
| Dimensions | 3350mm*850mm*1800mm |
|
Cutting width |
2400mm (can be customized) |
|
Cutting length |
Min 30cm-Infinite |
|
Cutting speed |
Vertical cut 10m/min,horizontal cut 5 s/cut |
| Cutting Materials | Cloth Fabric Garment Wool Textile |
| Condition | New |
| Machine weight | 600KGS |
| Max power | 1.8KW |
| Voltage | 380V/220V 3P |
Purpose:
It is used to crosscut,slitting and edge trimming the quilted fabric,and usually works in tandem with the quilting machine and rolling device,but it can also run alone.
Support and Services:
Our Computerized Cutting Machine is designed to provide high precision and efficiency in cutting various materials. We understand the importance of having a reliable and efficient machine for your production needs. That is why we offer top-notch technical support and service to ensure the smooth operation of our machine.
With our dedicated technical support and service, you can trust our Computerized Cutting Machine to deliver accurate and efficient cutting performance for your production needs.
