High Production Multi Needle Lock Stitch Quilting Machine For Beds And Garments
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Condition: | New |
|---|---|---|---|
| Brand Name: | YuTeng Machinery | Machine Purpose: | Garment, Bedding, Comforter, Textile，leather，seat Cover |
| Moving Style: | Multi Needle | Shuttle Model: | 7#/10# |
| Warranty: | One Year | Needle Model: | 14#/16#/19# |
| Highlight: | Multi Needle Lock Stitch Quilting Machine,Lock Stitch Quilting Machine For Beds |
||
Product Description

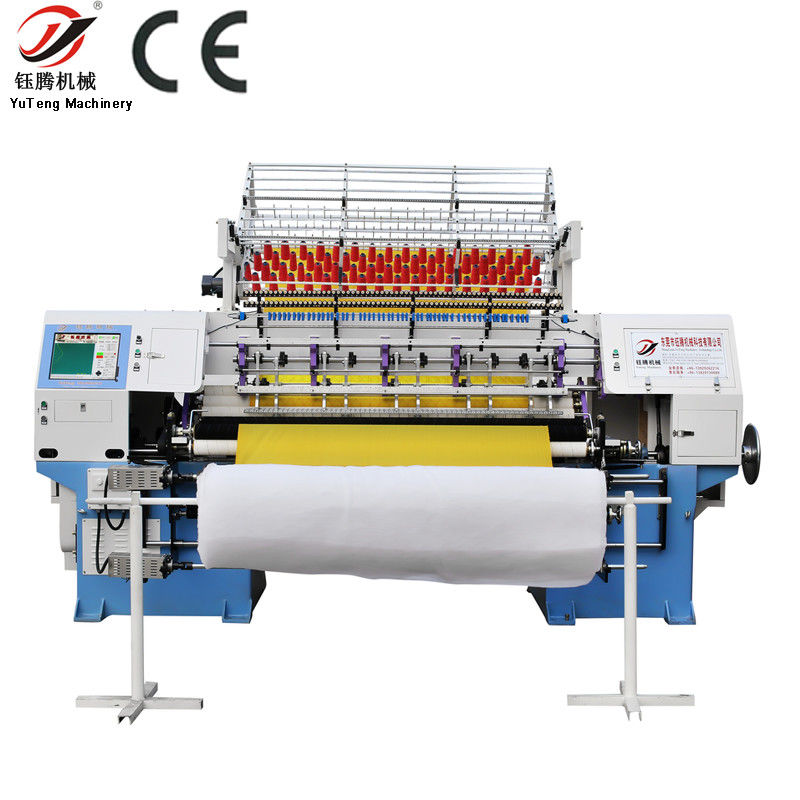

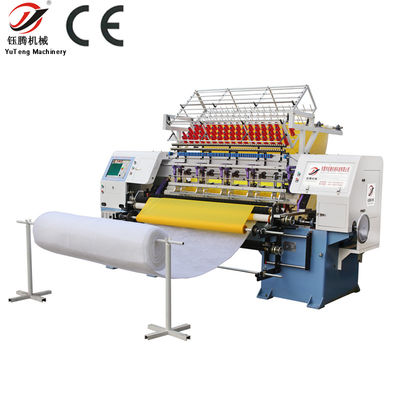

High production Multi Needle Lock Stitch Quilting Machine for Beds and Garments
Product Description:
The Lock Stitch Quilting Machine is an automatic industrial sewing machine specially designed for quilting. This Lock Stitch Quilting Machine offers excellent performance, high output, low noise and is suitable for a variety of quilting processes and fabrics. It is ideal for producing high quality quilts in industries like apparel, home textiles and furnishing.
Features:
- Product Name: Lock Stitch Quilting Machine
- Moving Style: Multi Needle
- Needle Model: 14#/16#/19#
- Space Between Needle: 25.4mm
- Port: ShenZhen
- Automatic Pattern Sewing Machine
- Computerized Pattern Sewing Machine
- Computer Controlled Sewing Machine
Technical Parameters:
| Parameter | Value |
|---|---|
| Production Speed(m/hour) | 20-160 |
| Shuttle Model | 7#/10# |
| Weight | 3300kg/ 3800KG/ 4500KG/ 5300KG |
| Quilting Direction | 360° |
| Port | ShenZhen |
| Space Between Needle | 25.4mm |
| Thickness Of Quilting | ≤25mm |
| Power | 3.5KW/5.5KW/7.5KW |
The main features:
1. Adjusted speed by computer and the speed can reach 1000r/min.
2. The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4.Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7.360° random quilting and limitless multi-span and independent quilting.
8.Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10.Stable operation, low noise, high precision, few break line, easy operating.
11.Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running (YGB series).
Purpose: It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
Support and Services:
We provide comprehensive technical support and services for Lock Stitch Quilting Machine. Our technical team is highly experienced, and will ensure that your machine is serviced and maintained to the highest standard.
- 24/7 technical support: Our professional support team is available to answer any questions or concerns you may have, 24 hours a day, 7 days a week.
- On-site maintenance and repair: Our technicians are available to come to your location to inspect, repair, and maintain your Lock Stitch Quilting Machine.
- Parts replacement: We offer a range of replacement parts for Lock Stitch Quilting Machines, to ensure that your machine is in top condition.
- Training: Our team is available to provide on-site training for Lock Stitch Quilting Machines.
For more information about our Technical Support and Services for Lock Stitch Quilting Machine, please contact us today.
Packing and Shipping:
paper board&film
FAQ:
- Q: What is the brand name of the Lock Stitch Quilting Machine?
- A: The brand name of the Lock Stitch Quilting Machine is Yuteng.
- Q: Where is the Lock Stitch Quilting Machine manufactured?
- A: The Lock Stitch Quilting Machine is manufactured in China.
- Q: What features does the Lock Stitch Quilting Machine have?
- A: The Lock Stitch Quilting Machine has a variety of features, including automatic tracing, and adjustable speed.
- Q: Is the Lock Stitch Quilting Machine user-friendly?
- A: Yes, the Lock Stitch Quilting Machine is designed to be user-friendly with intuitive operation.
- Q: What is the warranty period for the Lock Stitch Quilting Machine?
- A: One year.
