YGB64-2-3 Computerized Quilting Machine For Jacket Multi-Needle
Product Details
Computerized Quilting Machine for Jacket
,Multi-needle Quilting Machine
,Computerized Multi Needle Quilting for Jacket
DONGGUAN YUTENG MACHINERY TECHNOLOGY CO.,LTD.

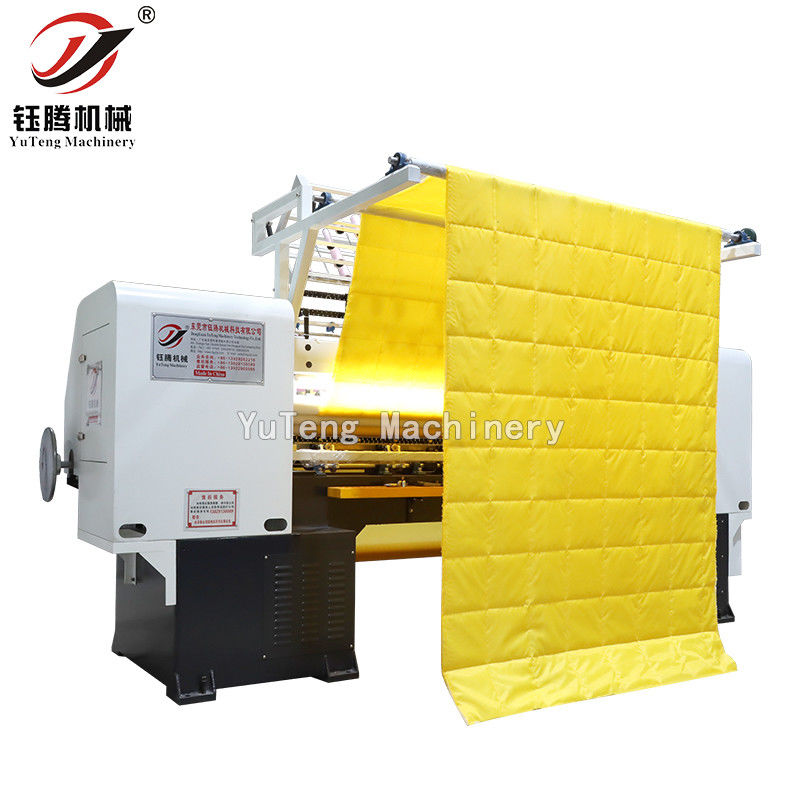

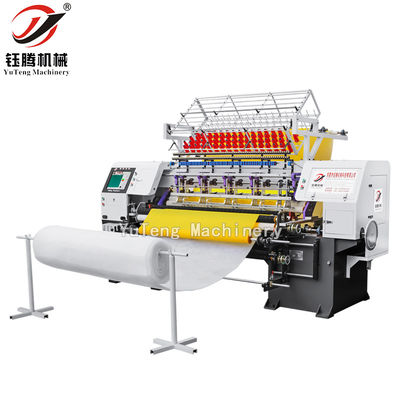

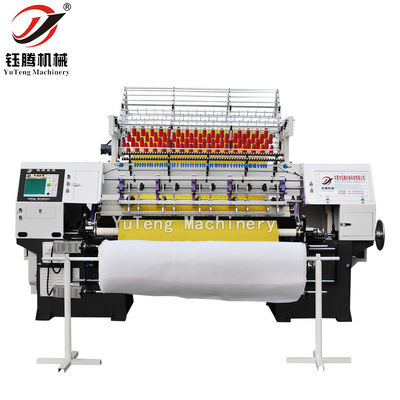

YGB64-2-3 Computerized Multi-needle Quilting Machine for Jacket
♦ YGB64-2-3 Computerized Multi-needle Quilting Machine Technical parameters :
| Model | YGB64-2-3S |
| Dimension(L*W*H) | 3800*1200*1800mm |
| Quilting Width | 1650mm |
| Needle bars | 2 Needle bars |
| Space between needle bars | 3" inch |
| Space between needle | 25.4mm |
| X-axis movement displacement | 203.2mm |
| Thickness of quilting | ≤25mm |
| Stitch length | 2-6mm |
| Speed of operation(m/hour) | 20-160(m/hour) |
| Model of shuttle | 7# |
| Model of needle | 16# |
| Quilting Speed(RPM) | 300-1000(RPM) |
| Voltage(AC) |
380V/50HZ, 3-Phase or 220V/60HZ,3-Phase |
| Total power | 3.5KW |
| Weight | 3200KG |
♦ Purpose :
It is widely used for quilting high-quality garments, bedding , textile, cap, bags, gloves, sleeping bag, seat cover and upholstery etc.
♦YGB64-2-3 Computerized Multi-needle Quilting Machine Product main features :
1. Adjusted speed by computer and the speed can reach 1000 RPM
2.Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
3. Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
4. Self-developed “YuTeng Quilting System”, easy to operation.
5. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
6. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
7. Adopt high precise and high rigidity import screw rod
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11. The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
-
