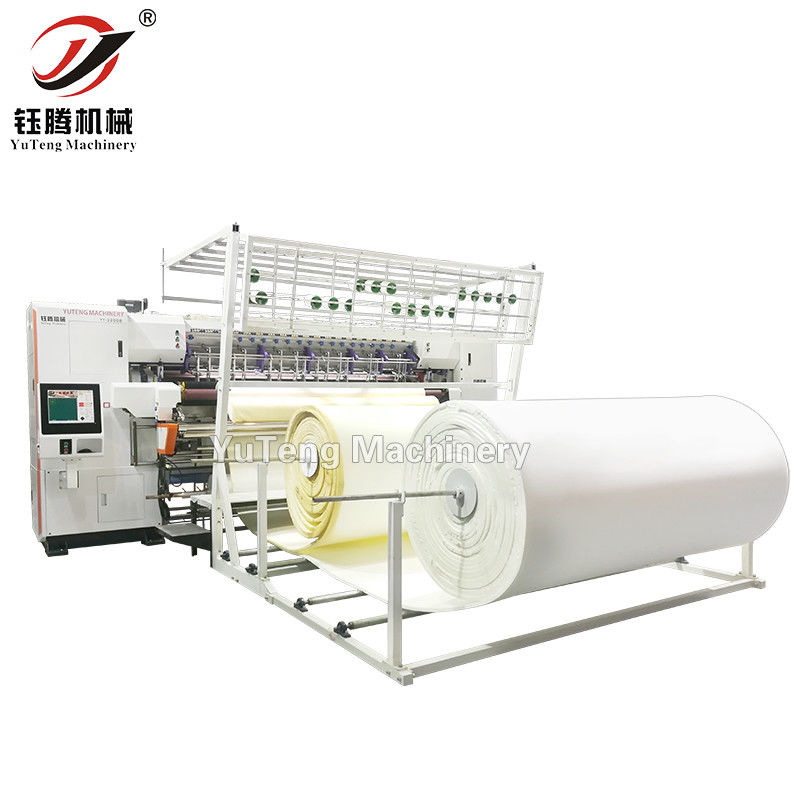

Chain Stitch Computerized Multi Needle Quilting Machine High Speed 1200RPM
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
Payment & Shipping Terms:
| Price: | $10,000.00 - $60,000.00/sets |
|---|---|
| Packaging Details: | film packing |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Not Available | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Motor |
| Warranty: | 1 Year | Applicable Industries: | Quilt,mattresses,conforters |
| Showroom Location: | South Korea | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support |
| Width For Quilt: | 245cm | Thickness For Quilt: | 80mm |
| Speed: | 1200RPM | After Warranty Service: | Video Technical Support |
| Local Service Location: | South Africa | Port: | Shenzhen |
| Highlight: | Chain Stitch Computerized Multi Needle Quilting Machine,Computerized Multi Needle Quilting Machine High Speed,1200RPM computerised quilting machine |
||
Product Description
YT-3200B High-Speed Computerized Chain Stitch Multi-needle Quilting Machine
Technical Parameters
| Model | YT-3200B |
| Dimension(L*W*H) | 5050*1600*2300 mm |
| Quilting width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2" ; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 300mm |
| Quilting thickness | 80mm |
| Stitch length | 1-12mm |
| Production speed | 60-230 M/H |
| Model of needle | 21#,22#,23#,24# |
| Quilting speed |
1200R/Min. |
| Voltage | 380V/50HZ 220V/60HZ |
| Power | 8KW |
| Nross weight | 5300kg |
High Speed Computerized Mattress Chain Stitch Quilting Machine YT-3200B
The Chain Stitch Computerized Multi Needle Quilting Machine is a high-speed quilting machine with a maximum speed of 1200 RPM. It is designed to provide efficient and precise quilting for various applications. The machine features a new aluminum alloy needle bar and press plate, which are controlled by a double-swinging device without the need for cam lubrication, ensuring clean and uninterrupted quilting.
With its 3 needle rows and adjustable spacing between the needles, this machine offers versatility in quilting patterns and designs. The X-axis movement displacement of 300mm allows for greater flexibility in quilting width. It can handle quilting thicknesses of up to 80mm, accommodating a wide range of quilting projects.
The machine is equipped with a self-developed "YuTeng Quilting System," which supports quilting and embroidering mainstream DST format files, making operation easy and convenient. The computer host utilizes an advanced embedded operating system and a self-developed motion control chip, ensuring fast response speed, long service life, and excellent stability.
The high-speed computerized quilting machine is suitable for quilt, mattress, and comforter production. It offers features such as automatic thread trimming, multi-span and independent patterns, and a wide range of stitch lengths from 1mm to 12mm. The machine is powered by a servo motor, providing speed control and positive inversion for efficient quilting operations.
Additionally, the machine is equipped with infrared safety protection and auto-stop sensors for enhanced safety. It comes with a one-year warranty, and after-sales services such as installation and training can be arranged upon request.

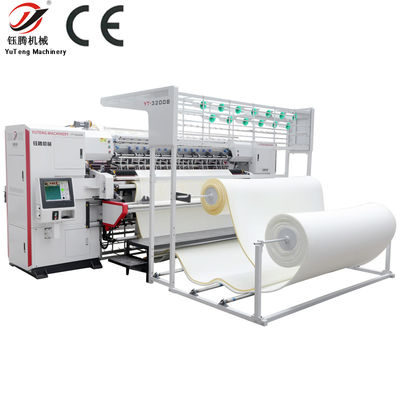

Picture of High Speed Computerized Mattress Chain Stitch Quilting Machine YT-3200B
This Quilting Machine can do quilt for mattress cover,comforters,winter quilt,blankets,medical pads...
Company information:
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4. Warranty: One year.
5.After-sale services: If customer need,One engineer will arrange to customer factory for installation and training.
6.Customized Model are available to meet client's various needs.
Welcome to contact with us,for more information of quilting machine.
