Computerised Chain Stitch Multi Needle Quilting Machine For Mattress
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
Payment & Shipping Terms:
| Price: | $10,000.00 - $50,000.00/sets |
|---|---|
| Packaging Details: | export packing |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining, Other, Advertising Company | Showroom Location: | Turkey, South Korea, Romania |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor | Condition: | New |
| Max Sewing Speed: | 1000 R/min | Max Sewing Thickness: | 80 Mm |
| Number Of Head: | Multi Needles | Moving Style: | Frame Moved |
| Voltage: | 220V,380V | Power: | 8 KW |
| Dimension(L*W*H): | 5000*1600*2300mm | Weight: | 5200 |
| Warranty: | 1 Year, One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shenzhen | ||
| Highlight: | Computerised Chain Stitch Multi Needle Quilting Machine,Mattress Chain Stitch Multi Needle Quilting Machine,Chain Stitch Computerised Quilting Machine |
||
Product Description
computerized chain stitch multi needle quilting machines YT-3200B
The main features:
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
Technicial paraters
| Model | YT-3200B |
| Dimension(L*W*H) | 5000*1600*2300 mm |
| Quilting width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2" ; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 300mm |
| Quilting thickness | 80mm |
| Stitch length | 1-12mm |
| Production speed | 60-230 M/H |
| Model of needle | 21#,22#,23#,24# |
| Quilting speed |
1200R/Min. |
| Voltage | 380V/50HZ 220V/60HZ |
| Power | 8KW |
| Gross weight | 5200kg |
Purpose: YTNC96-3-6 computerized chain stitch multi needle quilting machine is widely used for Mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, and more.

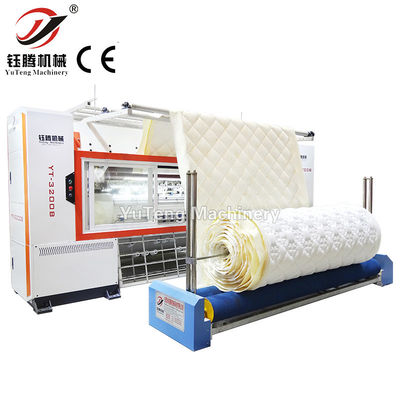

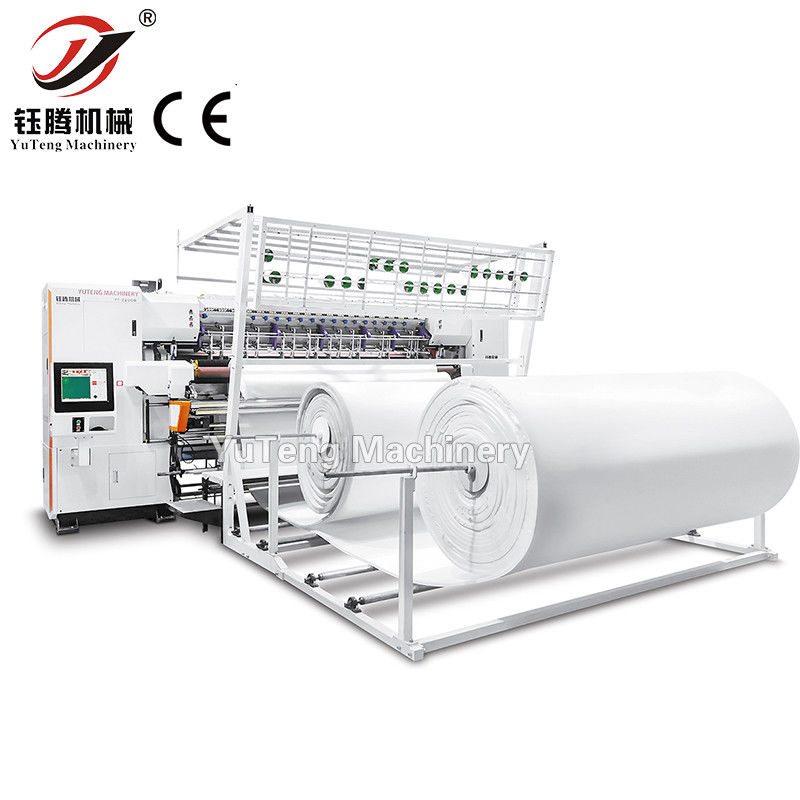

computerized chain stitch multi needle quilting machine and sample show
Company information:
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
Welcome to contact with us,for more information of quilting machine.
