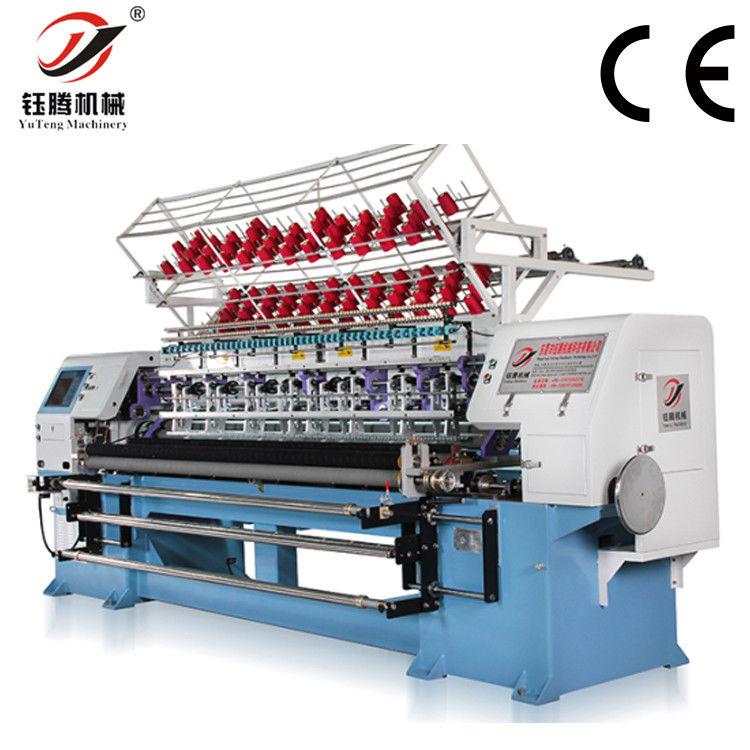

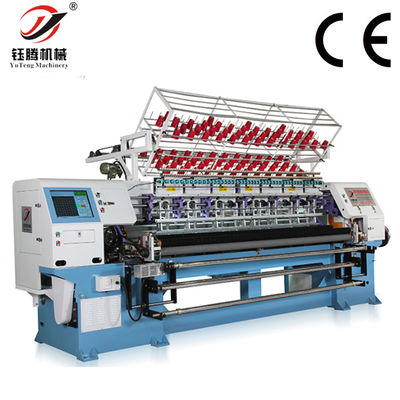

Automatic Lock Stitch Quilting Machine For Garment Textile Sleeping Bag
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
| Model Number: | YGB96-2-3 |
Payment & Shipping Terms:
| Price: | $20,000.00 - $40,000.00/sets |
|---|---|
| Packaging Details: | sea worthy packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Max Sewing Speed: | 800r/min |
|---|---|---|---|
| Max Sewing Thickness: | 25mm | Number Of Head: | Multi Needle |
| Moving Style: | Frame Moved | Voltage: | 380V/220V.50HZ |
| Power: | 5.5kw | Dimension(L*W*H): | 4900*1200*1800mm |
| Weight: | 4500kg | Warranty: | One Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Quilting Width: | 2450mm |
| The Number Of Needle Rows: | 2/3 | Space Between Needle Rows: | 3"/3"+3" |
| Space Between Needle: | 25.4mm | X-axis Movement Displacement: | 254/304.8mm |
| Stitch Length: | 2-6mm | Speed Of Operation: | 20-120m/hour |
| Model Of Needle: | 16# 19# | Port: | Shenzhen |
| Highlight: | Textile Lock Stitch Quilting Machine,Garment Lock Stitch Quilting Machine,Sleeping Bag Automatic Quilting Machine |
||
Product Description
Lock Stitch Quilting Machine High Quality Full Automatic Multi Needle Quiltingt Machine With Good Price ,
It is widely used for quilting high-quality garment , bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and wall decoration etc.

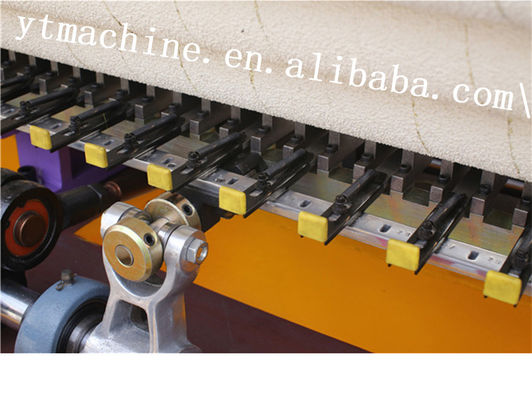

Lock Stitch Mechanism: The lock stitch quilting machine utilizes a lock stitch mechanism, which is commonly used in sewing machines. This mechanism involves the upper thread interlocking with the lower thread, creating a tight and secure stitch. The lock stitch ensures that the quilted layers are held together firmly, providing durability and longevity to the finished product.
Product Application
|
Technical Parameters
|
|||
|
Model
|
YGB96-2-3
|
Thickness of quilting
|
25mm
|
|
Dimension(L*W*H)
|
4900*1200*1800
|
Stitch length
|
2-6mm
|
|
Quilting Width
|
2450mm
|
Speed of operation
|
20-120mm
|
|
The number of needle rows
|
2/3
|
Model of needle
|
16# 19#
|
|
Space between needle rows
|
3"/3"+3"
|
Quilting Speed
|
300-800r/min
|
|
Space berween needle
|
25.4mm
|
Voltage
|
380V/220V/50HZ
|
|
X-axis movement displacement
|
254/304.8mm
|
Total power
|
5.5kw
|
Main Features
1) Adjusted speed by computer and the speed can reach 800r/min.
2) The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.

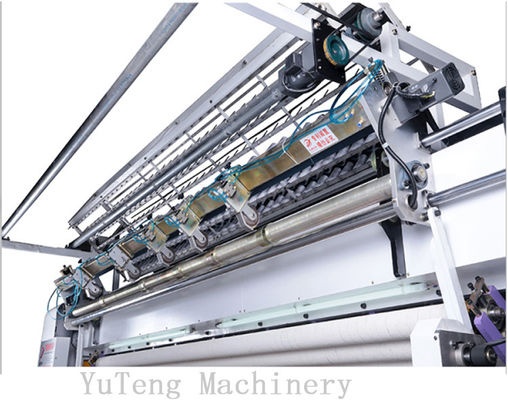

3) Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4) Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5) Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6)Adopt high precise and high rigidity import screw rod
7)360° random quilting and limitless multi-span and independent quilting.
8)Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9)Infrared sensor makes the operation more secure.
10)Stable operation, low noise, high precision, few break line, easy operating.
11)Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running (YGB series).
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*warranty: 1 year
