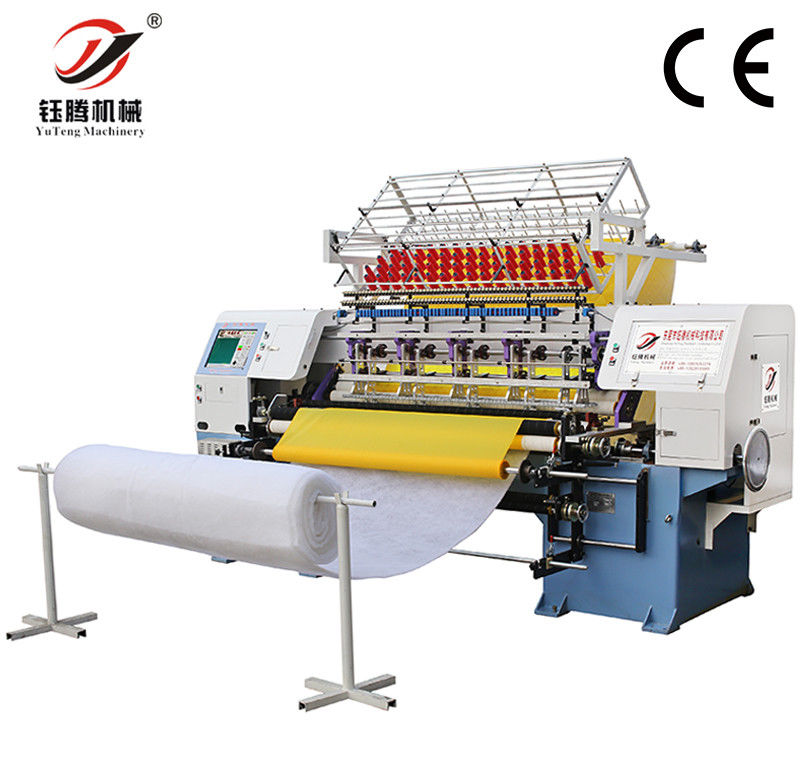

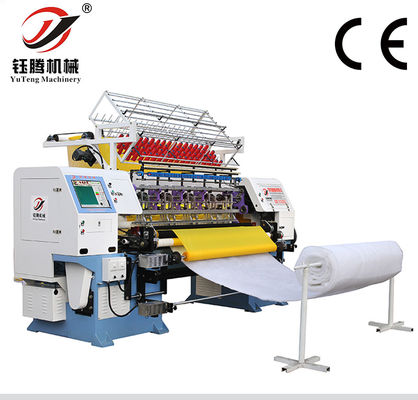

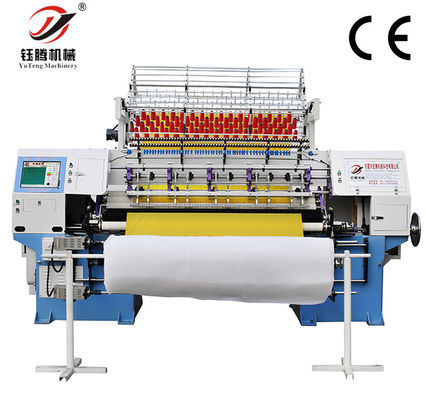

Multipurpose Lock Stitch Quilting Machine High Speed For Bed Sheet 1650mm Width
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $60,000.00/sets |
|---|---|
| Packaging Details: | film packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Max Sewing Speed: | 800r/min |
|---|---|---|---|
| Max Sewing Thickness: | 25mm | Number Of Head: | Multi Needle |
| Moving Style: | Frame Moved | Voltage: | 380V/220V |
| Power: | 3.5kw | Dimension(L*W*H): | 3800*1200*1800mm |
| Weight: | 3300kg | Warranty: | 1 Year |
| After-sales Service Provided: | Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas | Quilting Width: | 1650mm |
| The Number Of Needle Rows: | 2/3 | Space Between Needle Rows: | 3" |
| Space Between Needle: | 25.4mm | X-axis Movement Displacement: | 254mm |
| Stitch Length: | 2-6mm | Speed Of Operation: | 20-120m/hour |
| Model Of Needle: | 16# 19# | Port: | Shenzhen |
| Highlight: | Multipurpose Lock Stitch Quilting Machine,1650mm Lock Stitch Quilting Machine,Bed Sheet High Speed Quilting Machine |
||
Product Description
Lock Stitch Quilting Machine High Speed Bed Sheet Multi Needle Quilting Machine Single Needle Quilting Machine
Product Main Features:
- Computerized speed governing, Max.800r/min.

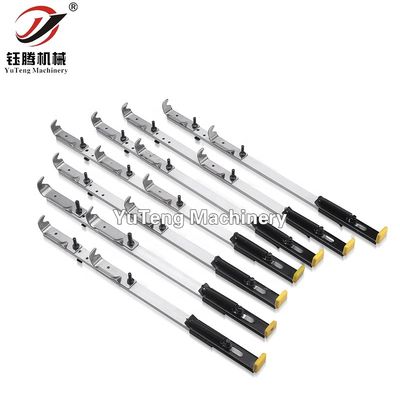

- Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
- Saddles and Rollers driven by Servo drive equipment,Spindle adopts frequency conversion control.
- Saddles using quilting machine with high rigidity design. The stand of fabric seprate from saddles, effectively reduce the operaing load of motor.
- Dual clutch device, to solve the synchronization problem of rollers in front and back.
- Using high-pricision and high rigidity imported screw mandrel.
- 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
- Automatic thread-break detection unit.
- Infrared sensor make sure more safety operation.
- The machine runs smoothly, low noise, high precision, low thread-break rate and easy to operate
- These machines often include a thread tension adjustment function that allows users to ensure the lock stitch is formed correctly, preventing puckering or loose stitches.
| Technical parameters | |||
| Model | YGC64-2-3 | YGC76-2-3 | YGC96-2-3 |
| Dimension(L*W*H) | 3800*1200*1800(mm) | 4300*1200*1800(mm) | 4900*1200*1800(mm) |
| Quilting Width | 1650mm | 2000mm | 2450mm |
| Needle rows | 2 | 2 | 2 |
| Space between needle rows | 76.2mm | 76.2mm | 76.2mm |
| Space between needle | 25.4mm | 25.4mm | 25.4mm |
| X-axis movement displacement | 228.6mm | 228.6mm | 228.6mm |
| Thickness of quilting | 25mm | 25mm | 25mm |
| Stitch length | 2-8mm | 2-8mm | 2-8mm |
| Speed of operation(m/hour) | 20-160 | 20-160 | 20-160 |
| Model of needle | 16#,19# | 16#,19# | 16#,19# |

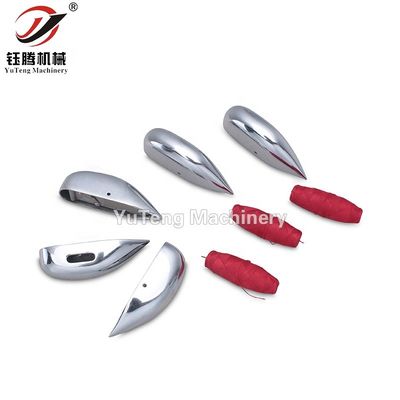

| shuttle model | 7# or 10# | 7# or10# | 7# or 10# |
| Quilting Speed(r/min) | 300-800 | 300-800 | 300-800 |
| Voltage(AC) | 380V/50HZ,220V/60HZ, 3P | 380V/50HZ,220V/60HZ, 3P | 380V/50HZ,220V/60HZ, 3P |
| Total power | 3.5KW | 3.5KW | 5.5KW |
| Gross weight | 3300KGS | 3500KGS | 4500KGS |
| * Can be customized according to customer requirements | |||
