800rpm Industrial Comforter Quilting Machine Automatic Multifunctional
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $10,000.00 - $45,000.00/sets |
|---|---|
| Packaging Details: | Sea worthy packing. |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Max Sewing Speed: | 800rpm |
|---|---|---|---|
| Max Sewing Thickness: | 25mm | Voltage: | 380V 50HZ |
| Power: | 3.5KW | Dimension(L*W*H): | 3800*1200*1800mm |
| Weight: | 3300KG | Warranty: | One Year |
| After-sales Service Provided: | Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas | Port: | Shenzhen |
| Highlight: | Industrial Comforter Quilting Machine,800rpm Comforter Quilting Machine,Automatic Quilting Machine Multifunctional |
||
Product Description

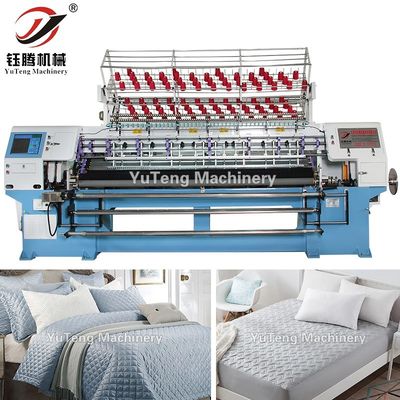

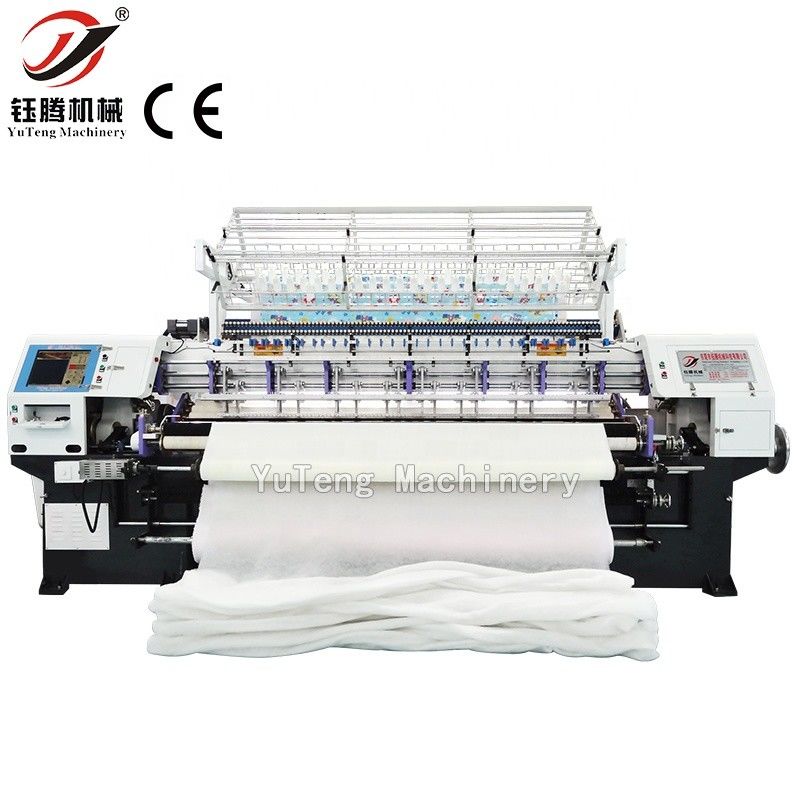

Comforter Quilting Machine YGB96-3-6
Product Application
comforter quilting machine is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
comforter quilting machine 245cm size YGB96-3-6 model
3 needle rows,shuttle big 10 number,96inch
|
Technical Parameters
|
||||
|
Model
|
YGB64-2-3
|
YGB76-2-3
|
YGB96-3-6
|
YGB128-2-3
|
|
Size(L*W*H)(mm)
|
3800*1200*1800
|
4000*1200*1800
|
4900*1200*1800
|
5700*1200*1800
|
|
Quilting width
|
1650mm
|
1930mm
|
2450mm
|
3300mm
|
|
Quantity of needle bar
|
2
|
2
|
3
|
2
|
|
Space between needle bar
|
3"
|
3"
|
3"+3"
|
3"
|
|
Space between needle
|
25.4mm
|
25.4mm
|
25.4mm
|
25.4mm
|
|
X-axis movement
|
254mm
|
254mm
|
308mm
|
254mm
|
|
Thickness of quilting
|
≤25mm
|
≤25mm
|
≤25mm
|
≤25mm
|
|
Speed of operation(m/hour)
|
20-120
|
20-120
|
20-120
|
20-120
|
|
Model of needle
|
16 #, 19 #
|
16 #, 19 #
|
16 #, 19 #
|
16 #, 19 #
|
|
Stitch length
|
2-6mm
|
2-6mm
|
2-6mm
|
2-6mm
|
|
Quilting speed(r/min)
|
300-800
|
300-800
|
300-800
|
300-800
|
|
Voltage
|
380V/220V/50HZ
|
380V/220V/50HZ
|
380V/220V/50HZ
|
380V/220V/50HZ
|
|
Total power
|
3.5Kw
|
3.5Kw
|
4.5Kw
|
5.5Kw
|
|
Gross weight
|
3300Kg
|
3500Kg
|
4500Kg
|
5300Kg
|
* Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.

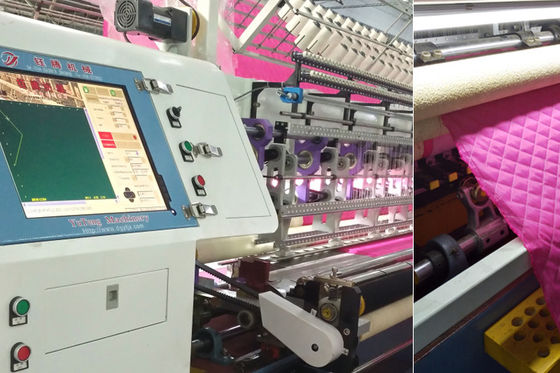

Main Parts
* The needle bar running adopt aluminum alloy needle bar frame structure, don't need to add extra lube, strong and durable.
* Adopt high precise and high rigidity import screw rod
*
Machine Parts
* Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
Main Parts
Name: Dive
Brand: Panasonic
* Adjusted speed by computer and the speed can reach 800r/min.
* Stable operation, low noise, high precision, few break line, easy operating.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
