Computerised Lock Stitch Quilt Quilting Machine For Bed Cover
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
Payment & Shipping Terms:
| Price: | $10,000.00 - $35,000.00/sets |
|---|---|
| Packaging Details: | export packing |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Manufacturing Plant | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Motor | Condition: | New |
| Max Sewing Speed: | 800 R/min | Max Sewing Thickness: | 25 Mm |
| Number Of Head: | Multi Needle | Moving Style: | Frame Moved |
| Voltage: | 220V,380V | Power: | 4KW |
| Dimension(L*W*H): | 4900*1200*1800 Mm | Weight: | 4500 |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shenzhen | ||
| Highlight: | Computerised Quilt Quilting Machine,Lock Stitch Quilt Quilting Machine,Bed Cover Computerised Quilting Machine |
||
Product Description
YGB model Quilt Making Machine Bed Cover Quilting Machine

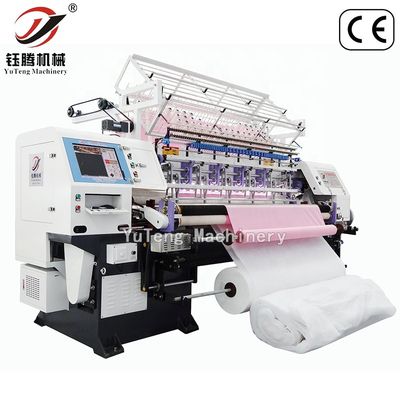

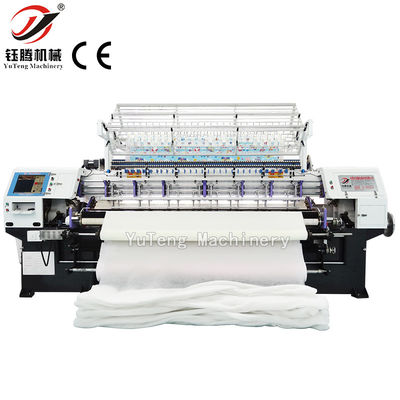

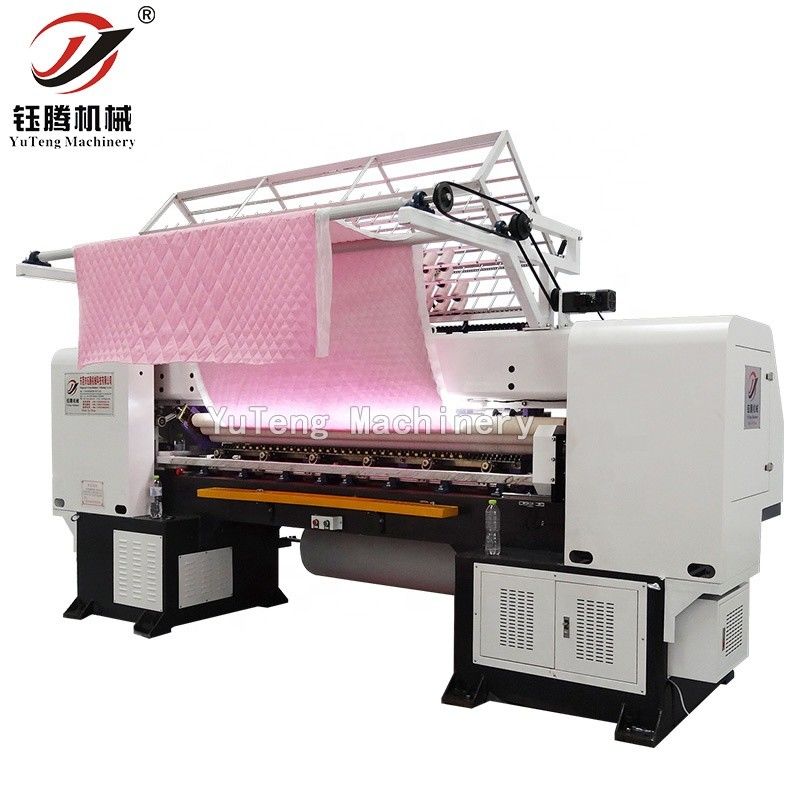

YGB96-3-6 High-speed Computerized Lock Stitch Multi-needle Quilting Machine
Technical Parameters
| Model | YGB96-3-6 |
| Size(L*W*H)(mm) | 4900*1100*1800 |
| quilting width | 2450mm |
| quantity of needle bar | 3 |
| space between needle bar | 3"+3" |
| space between needle | 25.4mm |
| X-axis movement | 304.8mm |
| thickness of quilting | ≤25mm |
| speed of operation(m/hour) | 20-120 |
| model of needle | 16 #, 19 # |
| stitch length | 2-6mm |
| quilting speed(r/min) | 300-800 |
| Voltage | 380V/220V/50HZ |
| Total power | 5.5Kw |
| gross weight | 4500Kg |
YGB96-3-6 High-speed Computerized Lock Stitch Multi-needle Quilting Machine
The main features:
1. Adjusted speed by computer and the speed can reach 800r/min.
2. The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4.Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7.360° random quilting and limitless multi-span and independent quilting.
8.Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10.Stable operation, low noise, high precision, few break line, easy operating.
11.Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running (YGB series).
Purpose: High Speed Computerized Multi needle Quilting Machine is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
YGB model Quilt Making Machine Bed Cover Quilting Machine
YGB96-3-6 High-speed Computerized Lock Stitch Multi-needle Quilting Machine
This quilt machine can do quilt for bed sheet,cloth,blankets,mattress,Jackets,garments,sofa covers,shoese,bags.shaddles,comforters,home textile,winter quilt,summer quilt...
Company information:
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4.After-sale services: Good after-sale service provided, we believe in good customer service all the time.
5. Warranty: One year.
6.Customized Model are available to meet client's various needs.
