High Speed Lock Stitch Quilting Machine Computerized 165cm Width
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | Other 10000.0 - Other 50000.0/sets |
|---|---|
| Packaging Details: | export packing |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Max Sewing Speed: | 800 R/min |
|---|---|---|---|
| Max Sewing Thickness: | 25 Mm | Number Of Head: | Multi Needle |
| Moving Style: | Frame Moved | Voltage: | 220V,380V |
| Power: | 3.5KW | Dimension(L*W*H): | 3800*1100*1800 Mm |
| Weight: | 3500 Kg | Warranty: | 1 Year |
| After-sales Service Provided: | Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas | Number Of Needle Bar: | 2 |
| Width Of Quilt: | 165cm | Port: | Shenzhen |
| Highlight: | High Speed Lock Stitch Quilting Machine,Lock Stitch Quilting Machine Computerized,165cm High Speed Quilting Machine |
||
Product Description

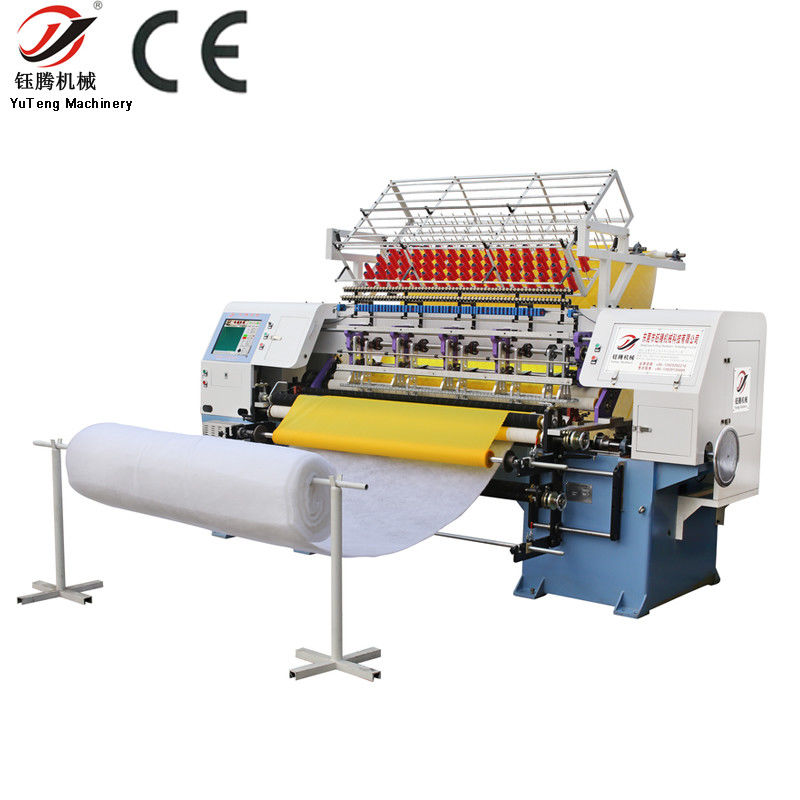

High Speed Lock Stitch Quilting Machine Price YGB64 model
Technical Parameters
| Model | YGB64-2-3 | YGB76-2-3 | YGB96-2-3 | YGB128-2-3 |
| Size(L*W*H)(mm) | 3800*1100*1800 | 4000*1100*1800 | 4900*1100*1800 | 5700*1100*1800 |
| quilting width | 1650mm | 1930mm | 2450mm | 3300mm |
| quantity of needle bar | 2 | 2 | 2 | 2 |
| space between needle bar | 3" | 3" | 3" | 3" |
| space between needle | 25.4mm | 25.4mm | 25.4mm | 25.4mm |
| X-axis movement | 254mm | 254mm | 254mm | 254mm |
| thickness of quilting | ≤25mm | ≤25mm | ≤25mm | ≤25mm |
| speed of operation(m/hour) | 20-120 | 20-120 | 20-120 | 20-120 |
| model of needle | 16 #, 19 # | 16 #, 19 # | 16 #, 19 # | 16 #, 19 # |
| stitch length | 2-6mm | 2-6mm | 2-6mm | 2-6mm |
| quilting speed(r/min) | 300-800 | 300-800 | 300-800 | 300-800 |
| Voltage | 380V/220V/50HZ | 380V/220V/50HZ | 380V/220V/50HZ | 380V/220V/50HZ |
| Total power | 3.5Kw | 3.5Kw | 4Kw | 5.5Kw |
| gross weight | 3300Kg | 3500Kg | 4500Kg | 5300Kg |
High Speed Lock Stitch Quilting Machine Price YGB64 model
The main features:
1. Adjusted speed by computer and the speed can reach 800r/min.
2. The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4.Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7.360° random quilting and limitless multi-span and independent quilting.
8.Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10.Stable operation, low noise, high precision, few break line, easy operating.
11.Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running (YGB series).
Purpose: High Speed Computerized Multi needle Quilting Machine is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
High Speed Lock Stitch Quilting Machine Price YGB64 model
This quilt machine can do quilt for bed sheet,cloth,blankets,mattress,Jackets,garments,sofa covers,shoese,bags.shaddles,comforters,home textile,winter quilt,summer quilt...
Company information:
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
- Delivery Time: The delivery time for the Lock Stitch Multi Needle Quilting Machine is typically within 7 to 30 days from the date of receiving a 30% deposit. However, the actual delivery time may vary depending on the final quantity of the order.
- Payment Terms: We require a 30% deposit to be paid via T/T (Telegraphic Transfer) in advance, and the remaining 70% balance should be settled before shipment.
- Delivery Terms: We offer various delivery terms including FOB (Free On Board), CIF (Cost, Insurance, and Freight), CFR (Cost and Freight), and others. Please specify your preferred delivery term when placing the order.
- After-sale Services: We are dedicated to providing excellent after-sale services and believe in maintaining good customer service at all times. If you have any issues or concerns regarding the machine, our team will be available to assist you and provide necessary support.
- Warranty: The Lock Stitch Multi Needle Quilting Machine comes with a one-year warranty. During this period, we will cover any manufacturing defects or malfunctions that occur under normal usage conditions.
6.Customized Model are available to meet client's various needs.
