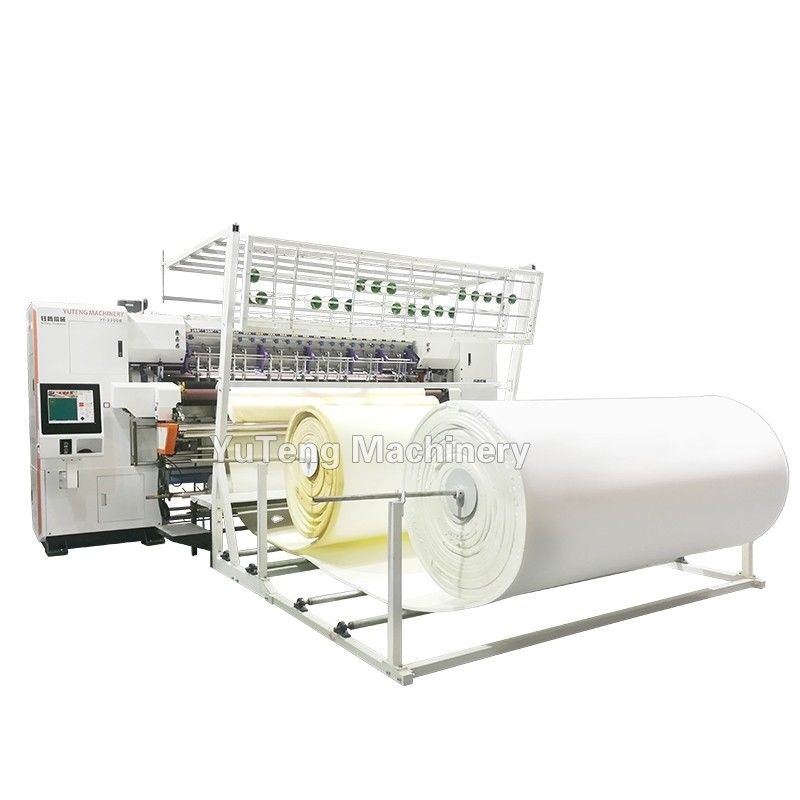

High Speed Computerized Quilting Machine Chain Stitch Multi Needle For Mattress
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter (M2) |
|---|---|
| Packaging Details: | The wooden case |
|
Detail Information |
|||
| Applicable Industries: | Factory | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Max Sewing Speed: | 2450mm | Max Sewing Thickness: | 80mm |
| Number Of Head: | 3 | Moving Style: | Frame Moved |
| Voltage: | 380V/50Hz 220V/60Hz | Power: | 8Kw |
| Dimension(L*W*H): | 5400*1600*2300mm( Standard) | Weight: | 5500 |
| Warranty: | 1 Year | Product Name: | Needle Quilting Machine |
| Highlight: | Computerized Quilting Machine Chain Stitch,Computerized Quilting Machine Multi Needle,Mattress computerised Quilting Machine |
||
Product Description

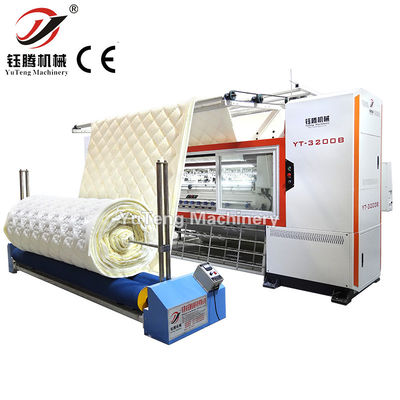

High Speed Computerized Chain Stitch Multi Needle Mattress Quilting Machine
360°Multi-span and independent patterns,automatic thread trimming function.
Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
Computer host adopt the most advanced embedded operating system and self-develop motion control chip, fast response speed, long
service life, good stability.
Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice
thread trimming function,
Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
Strong functions of pattern-combining and multi-span(Tack&Jump)quilting to enable you to quilt different patterns in each row in
the mattresses of different sizes.
High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
Infrared safety protection and Auto-step sensors detection function.
Finished Product Display
Quilting machine Features:
| Model | YT-3200B | Stitch Length | 1-12mm | |
| Dimension (L×W×H)(mm) | 5050*1600*2300mm | Speed of Operation | 60-230(m/hour) | |
| Quilting Width | 2450mm | Model of Needle | 21#,22#,23#,24# | |
| Needles Rows | 3 | Quilting Speed | 100-1200(r/min) | |
| Space Between Needle Rows | 3"+2";3"+3" | Voltage(AC) | 380V/50Hz 220V/60Hz,3-Phase | |
| Space Between Needle | 25.4mm | Total Power | 8Kw | |
| X-axis Movement Displacement | 305mm | Gross Weight | 5500Kg | |
| Thickness of Quilting | ≤80mm |
Products Description
Unique oil bag oil supply system(Patented structure)
Aluminum alloy needle and pressure rod holder
Packing
Company Profile
Company Profile
DongGuan YuTeng Machinery Technology Co., Ltd. Is a modernized, high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine, Double Rows Computerized Quilting and Embroidery Machine ,Computerized Chain Stitch Multi-Needle Quilting Machine ,Computerized Panel Cutter Machine, Rolling machine .The products are widely used in garment, bedding, handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the the profound development in production, sales, and Service. The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over. 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad . Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clients with full technical support and perfect after service. With integrity, profession, innovation, science and technology, YuTeng is looking forward to cooperating with companies from all over the world.
Certifications
FAQ
Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Product /Quality Guarantee and After Sale Service?
1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
