Multi Needle Computerized Chain Stitch Quilting Machine For Mattress Shuttleless
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
Payment & Shipping Terms:
| Packaging Details: | Seaworthy packing |
|---|---|
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 1200 R/min | Max Sewing Thickness: | 80mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 8KW |
| Dimension(L*W*H): | 5050*4600*2300(mm) | Weight: | 5300 |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | Computerized Chain Stitch Quilting Machine Mattress,Shuttleless Computerized Chain Stitch Quilting Machine,Multi Needle shuttleless quilting machine |
||
Product Description
Mattress Making Machines , Computer Chain Stitch Shuttleless Quilting Machine
Product main features :
1,New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2,360°Multi-span and independent patterns,automatic thread trimming function.
3,Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file,easy to operation.
4,computer host adopt the most advanced embedded operating system and self-developed motion control chip,fast response speed,long service life,good stability .
5,Spindle driven by servo motor,it is able to change speed and positive inversion,cooperate with software to complete the slice thread trimming function
6,Adopt international advanced slice thread trimming function :effectively reduce the probability thread jump,more stable.
7,Strong functions of pattern-combining and multi-span(Tack&jump)quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
8,High rigid machine body,high running speed,balance running ,high precision,lower rate jump threads,perfect pattern stitch.
9,Infrared safety protection and Auto-stop sensors detection function.
Technical parameters :
| Model | YT-3200B |
| Dimension(L*W*H) | 5050mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2";3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 300mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 1200(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ |
| Total power | 8KW |
| Gross weight | 5300kg |

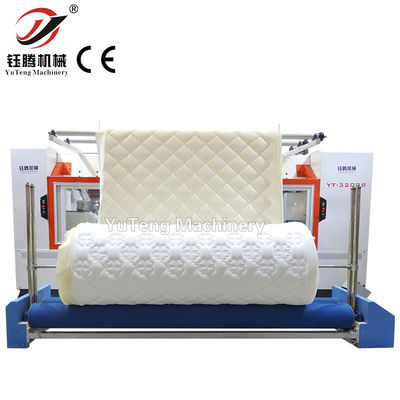

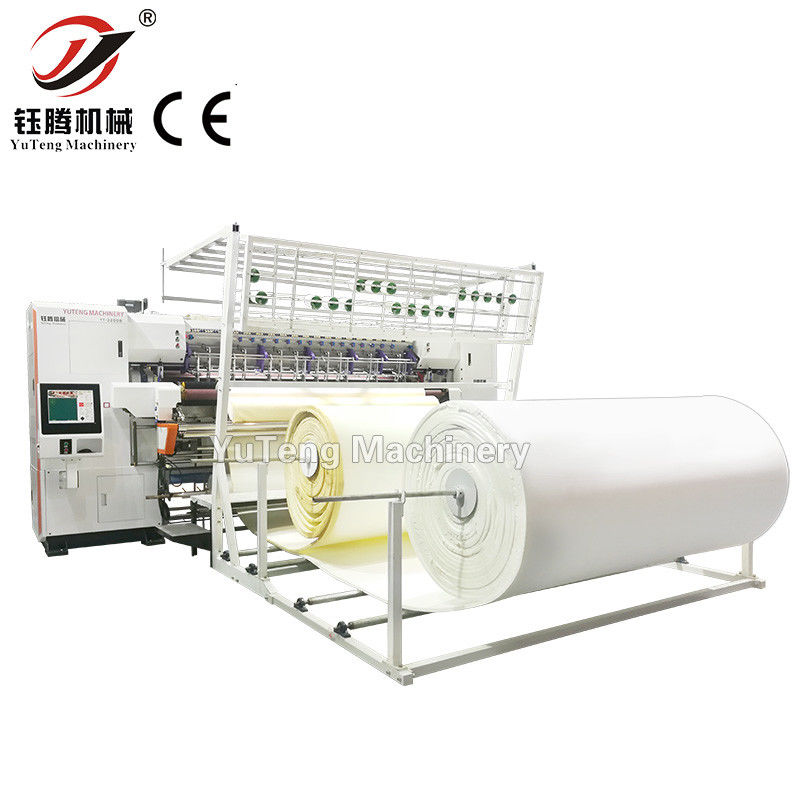

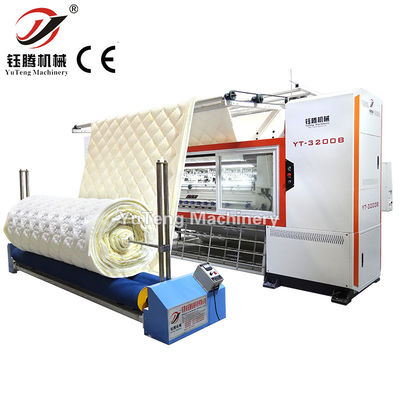

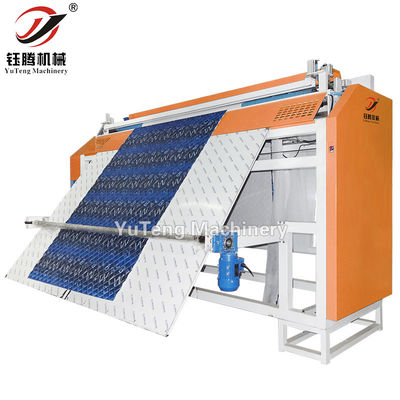

Machine picture:
Purpose :
Mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers, decoration and more.
Certificate :
Company pictures :
Our Services:
- Warranty: The machine comes with a 1-year warranty, ensuring customer satisfaction and peace of mind.
- Installation and Training: YuTeng Machine offers services to send overseas engineers for machine installation and training, enabling customers to quickly set up and operate the machine effectively.
- Before-Sales and After-Sales Support: The company provides quality before-sales and after-sales services, assisting customers with any inquiries, technical support, or troubleshooting.
- Factory Visit: Customers have the opportunity to visit the YuTeng Machine factory to see the manufacturing process and gain a deeper understanding of the product and its quality.
- Quilted Fabric Samples: The company can provide samples of quilted fabric, allowing customers to assess the machine's performance and stitch quality.
