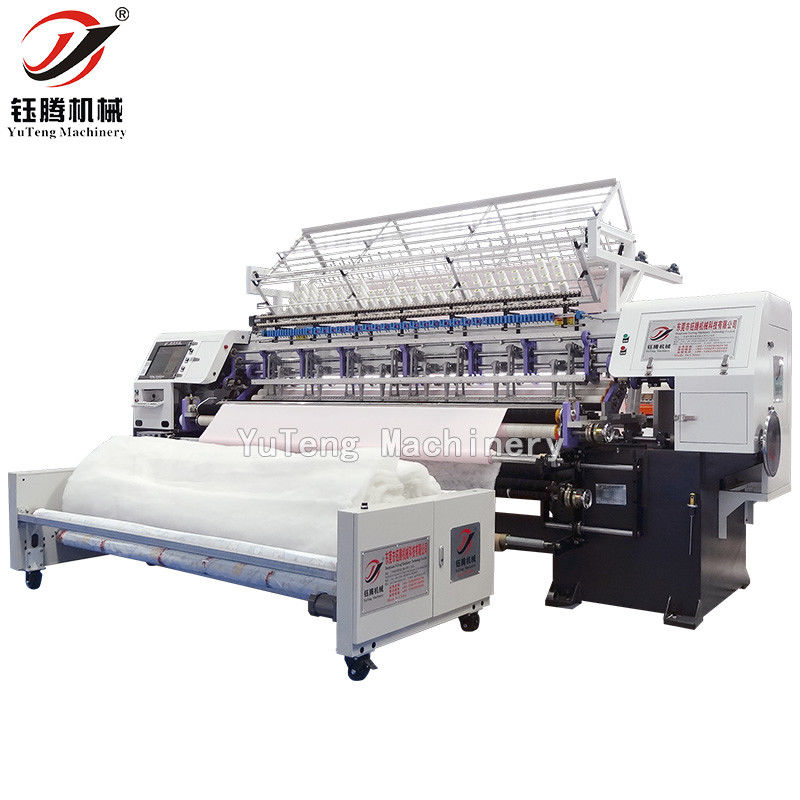

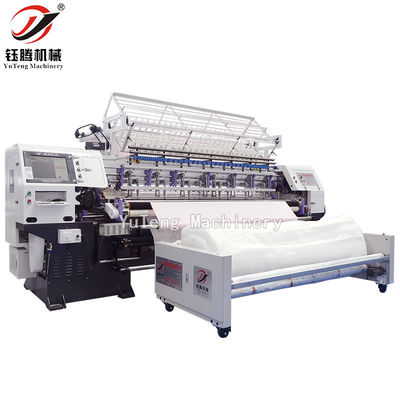

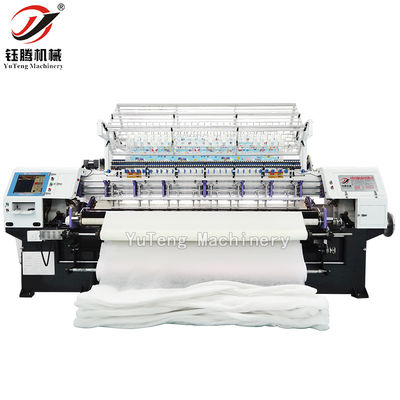

Computerized Multi Needle Lock Stitch Quilting Machine Multi Needle Quilting Machine Factory
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $40,000.00/sets |
|---|---|
| Packaging Details: | Seaworthy packing |
| Supply Ability: | 360 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800 R/min | Max Sewing Thickness: | 25mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 5.5KW |
| Dimension(L*W*H): | 4900*1200*1800(mm) | Weight: | 4100 |
| Warranty: | 1 Year, 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Shuttle Model: | 7 Or 10 | Port: | Shenzhen/Guangzhou |
| Highlight: | Factory Lock Stitch Quilting Machine,Multi Needle Quilting Machine |
||
Product Description
Computerized Multi Needle Lock Stitch Quilting Machine Multi Needle Quilting Machine Factory
- Computerized speed control up to 800 RPM.
- Durable aluminum alloy needle bar frame structure for oil-free operation.
- Servo-driven saddles and rollers with frequency conversion control.
- High rigidity design of saddles and separate fabric stand to reduce motor load.
- Dual clutch device for synchronized rollers.
- Imported high-precision and high-rigidity screw mandrel.
- 360-degree free quilting with unlimited multi-span independent patterns.
- Automatic thread-break detection unit.
- Infrared sensor for enhanced safety during operation.
- Smooth operation, low noise, high precision, low thread-break rate, and easy to use.
Technical parameters :
|
Model |
YGB96-2-3 |
YGB96-3-5 |
YGB96-3-6 |
|
Dimension(L*W*H) |
4900*1200*1800(mm) |
4900*1200*1800(mm) |
4900*1200*1800(mm) |
|
Quilting Width |
2450mm |
2450mm |
2450mm |
|
Needle rows |
2 |
3 |
3 |
|
Space between needle rows |
3" |
3"+2" |
3"+3" |
|
Space between needle |
25.4mm |
25.4mm |
25.4mm |
|
X-axis movement displacement |
254mm |
304.8mm |
304.8mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
≤25mm |
|
Stitch length |
2-6mm |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16# or 19# |
16# or 19# |
16# or 19# |
|
Quilting Speed(r/min) |
300-800(RPM) |
300-800(RPM) |
300-800(RPM) |
|
Voltage(AC) |
380V/50HZ,220V/60HZ |
380V/50HZ,220V/60HZ |
380V/50HZ,220V/60HZ |
|
Total power |
5.5KW |
5.5KW |
5.5KW |
|
Gross weight |
4200kg |
4200kg |
4200kg |
Machine details :
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
Certificate :
Company pictures :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
