Computerised Multi Needle Shuttle Quilting Machine
Product Details
Computerised Multi Needle Quilting Machine
,Computerised Shuttle Quilting Machine

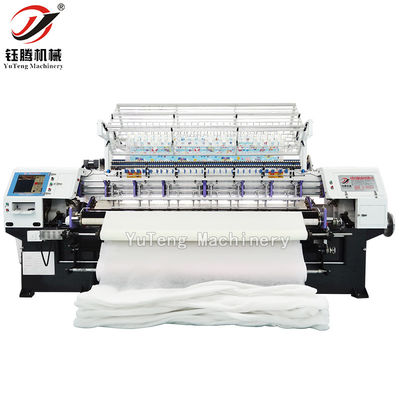

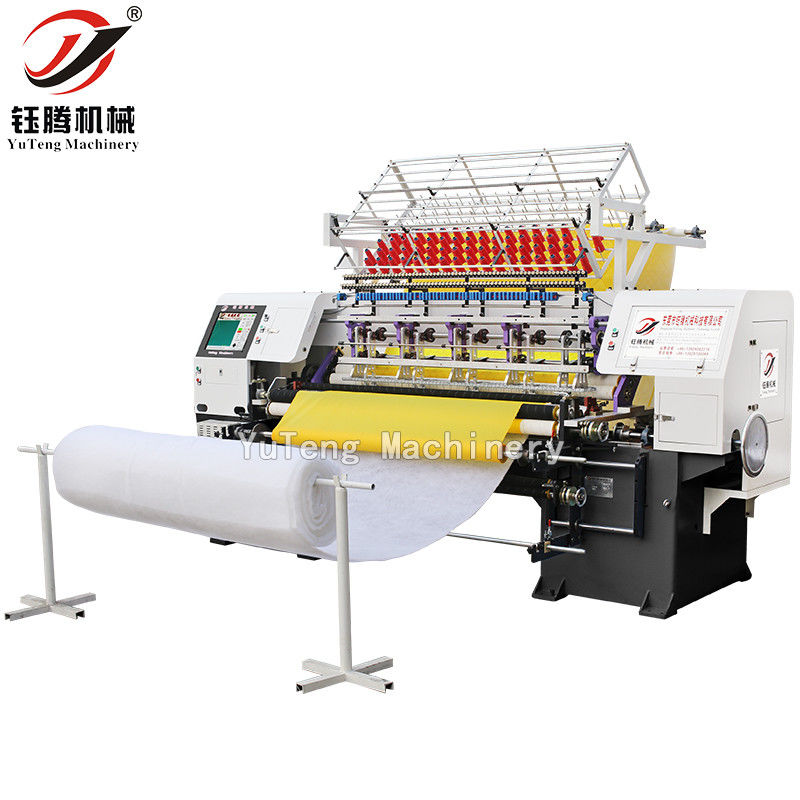

Computerised Multi Needle Shuttle Quilting Machine
1. Computerized speed governing , max. 800 RPM.
2. Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3. Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4. Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5. Dual clutch device, to solve the synchronization problem of rollers in front and back.
6. Using high-precision and high rigidity Imported screw mandrel.
7. 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8. Automatic thread-break detection unit.
9. Infrared sensor make sure more safety operation.
10. The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
| Model | YGB64-2-3 |
| Dimension(L*W*H) | 3800mm*1200mm*1800mm |
| Quilting Width | 1650mm |
| Needle rows | 2 |
| Space between needle rows | 3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 203.2mm |
| Thickness of quilting | 25mm |
| Stitch length | 2-12mm |
| Speed of operation(m/hour) | 20-160(m/hour) |
| Model of needle | 14#,16#,19# |
| Quilting Speed(r/min) | 1000(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ |
| Total power | 3.5KW |
| Gross weight |
4200kg |
New aluminum alloy needle bar frame structure, Oil free, sturdy and durable, Can avoid lubrication and dirty material effectively
The stand of bottom cloth separate from moving saddles
Available in multiple languages
Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file
Automatic thread-break detection
The pattern produced is accurate and beautiful
Shuttle holder and shuttle
Application
High-speed computerized multi-needle shuttle quilting machine,Is widely used for quilting high-quality garments, bedding covers, textile,shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and wall decoration etc.
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
-
