Computer MultiNeedle Quilting Machine,Shuttle Holder Quilting Machine,Industrial Sewing Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machine |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $30,000.00/sets |
|---|---|
| Packaging Details: | Export packaging |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Facetory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800 R/min | Max Sewing Thickness: | ≤25mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 3.5kw |
| Dimension(L*W*H): | 4400*1200*1800(mm) | Weight: | 3500 |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Shuttle Model: | 7 Or 10 | Port: | ShenZhen/GuangZhou |
| Highlight: | Computer MultiNeedle Quilting Machine,Industrial Sewing Machine Quilting Machine,Industrial Sewing Quilting Machine |
||
Product Description

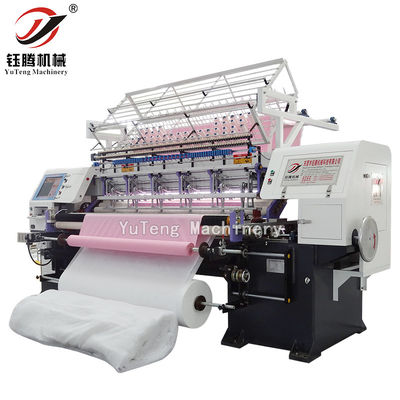

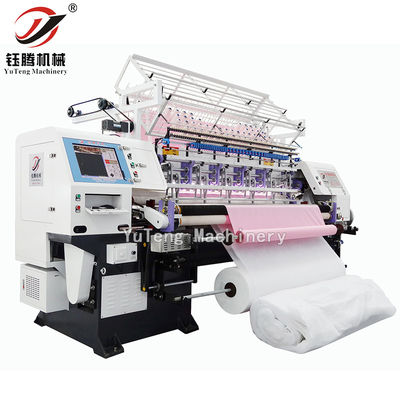

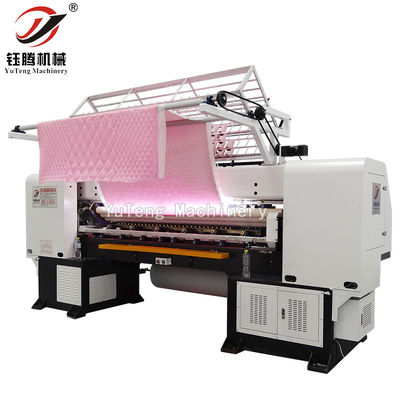

Computer MultiNeedle Quilting Machine,Shuttle Holder Quilting Machine,Industrial Sewing Machine
1, The machine features computerized speed control, allowing you to adjust the sewing speed according to your requirements. This flexibility ensures optimal stitching results and efficient operation.

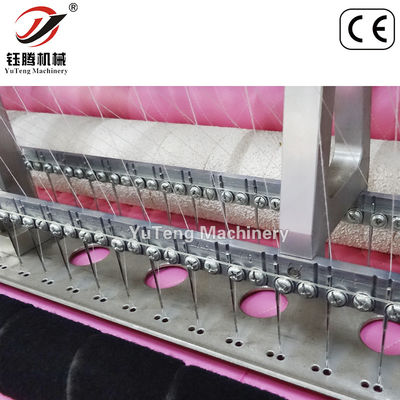

2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine features user-friendly controls and interfaces, making it easy to operate even for beginners. It runs smoothly with low noise and has a low thread-break rate, reducing downtime and increasing efficiency.
Technical parameters :
|
Model |
YGB76-2-3 |
YGB76-3-5 |
YGB76-3-6 |
|
Dimension(L*W*H) |
4400*1200*1800(mm) |
4400*1200*1800(mm) |
4400*1200*1800(mm) |
|
Quilting Width |
2000mm |
2000mm |
2000mm |
|
Needle rows |
2 |
3 |
3 |
|
Space between needle rows |
3" |
3"+2" |
3"+3" |
|
Space between needle |
25.4mm |
25.4mm |
25.4mm |
|
X-axis movement displacement |
254mm |
304.8mm |
304.8mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
≤25mm |
|
Stitch length |
2-6mm |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
16#,19# |
|
Quilting Speed(r/min) |
300-800(RPM) |
300-800(RPM) |
300-800(RPM) |
|
Voltage(AC) |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
|
Total power |
3.5KW |
3.5KW |
3.5KW |
|
Gross weight |
3500kg |
3500kg |
3500kg |
Purpose :

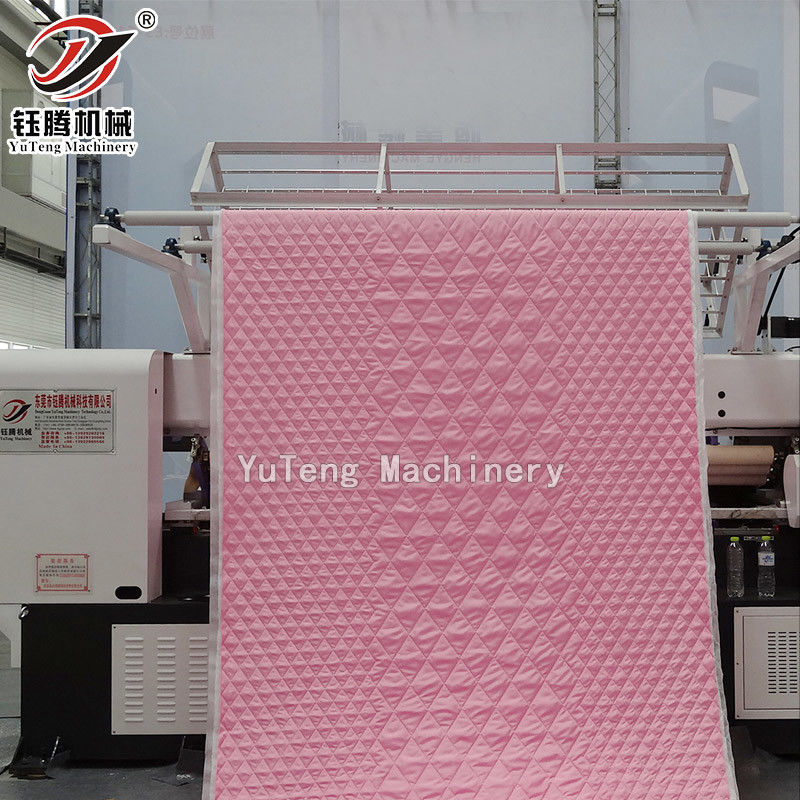

It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
Certificate :
Company pictures :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
