Computerized Lock Stitch Sewing Quilting Machine Bed Sheet Making Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $40,000.00/sets |
|---|---|
| Packaging Details: | Film packing |
| Supply Ability: | 320 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800 R/min | Max Sewing Thickness: | ≤25mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 4.5KW |
| Dimension(L*W*H): | 4800*1200*1800(mm) | Weight: | 4200kg |
| Warranty: | 1 Year | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Viet Nam, South Korea | After-sales Service Provided: | Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | Computerized Lock Stitch Quilting Machine,Sewing Lock Stitch Quilting Machine |
||
Product Description
Computerized Lock Stitch Sewing Quilting Machine Bed Sheet Making Machine
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
11,Luxury lock stitch quilting machines are capable of high-speed quilting without compromising on stitch quality. They can stitch rapidly, ensuring efficient production and completion of quilting projects. The machine's powerful motor and robust construction enable it to handle thick layers of fabric with ease, providing consistent and flawless stitching results.
Technical parameters :
|
Model |
YGB96-2-3 |
YGB96-3-5/6 |
|
Dimension(L*W*H) |
4800*1200*1800(mm) |
4800*1200*1800(mm) |
|
Quilting Width |
2450mm |
2450mm |
|
Needle rows |
2 |
3 |
|
Space between needle rows |
3" |
3"+2"/3"+3" |
|
Space between needle |
25.4mm |
25.4mm |
|
X-axis movement displacement |
254mm |
304.8mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
|
Stitch length |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
|
Quilting Speed(r/min) |
300-800(RPM) |
300-800(RPM) |
|
Voltage(AC) |
380V/50HZ,220V/60HZ |
380V/50HZ,220V/60HZ |
|
Total power |
5.5KW |
5.5KW |
|
Gross weight |
4200kg |
4200kg |
Purpose :

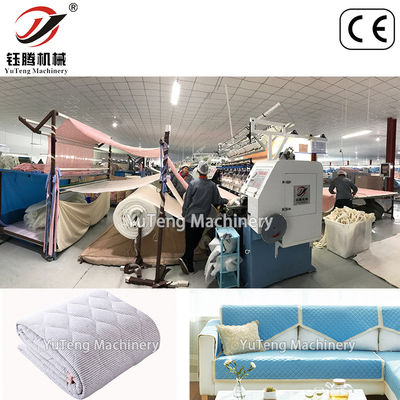

It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

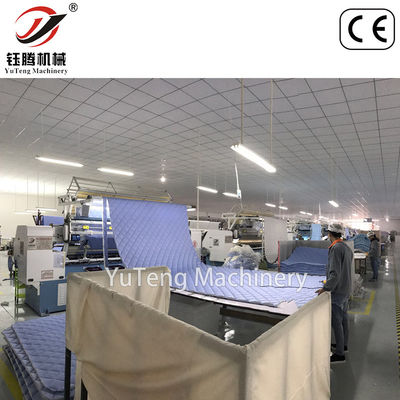

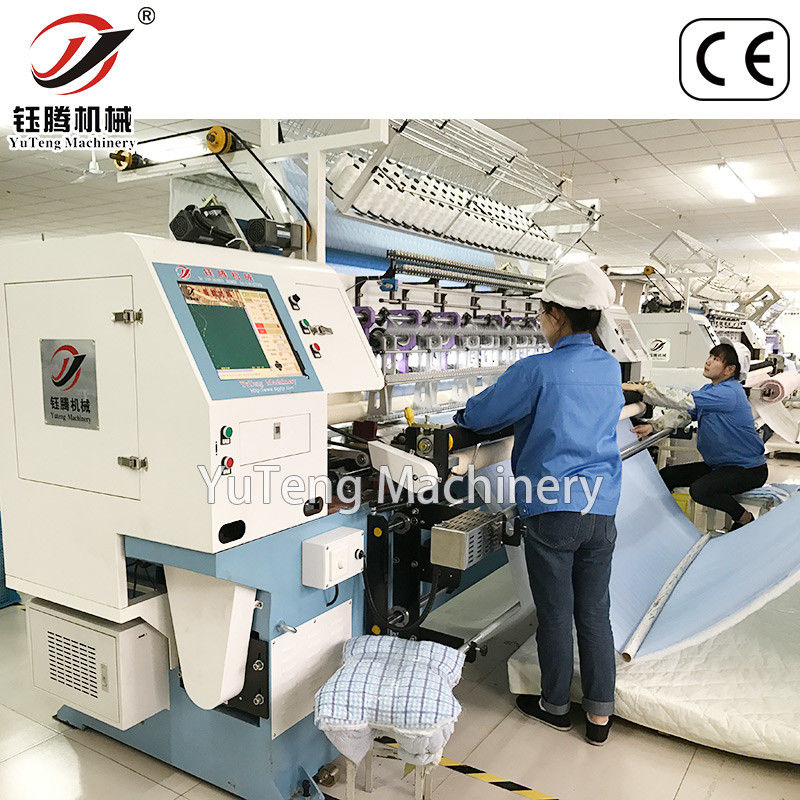

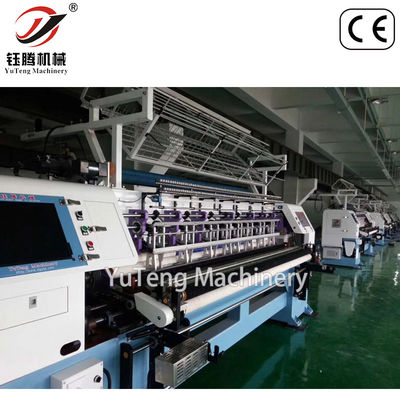

Quilting Machine Pictures :
Certificate :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
